Super Micro

TwinPro

Leading 1U/2U TwinPro Architecture with 4 and 2 Nodes


1U 2-Node TwinPro 2U 2-Node TwinPro 2U 4-Node TwinPro

Overview

Highlights

  • 16 DIMM slots, Up to 4TB DDR4-3200 memory
  • Support up to 6 hot-swappable SAS/SATA and 2 internal M.2 NVMe SSDs per node
  • Onboard Dual 10GbE RJ45 ports

Innovations

  • The Most Cost Optimized 2U, 4 Node

Optimized for:

  • Enterprise Mission-critical Applications
  • Data Center Cloud Computing
  • HPC
  • Virtualization
  • Big Data
  • Financial Analysis

Product Features

Form Factor
2U 4-Node Rackmount/1U 2-Node Rack Mount

Memory
Up to 16 DIMM slots up to 4TB DDR4-3200 memory

Power
2200W Titanium level (96%) in 2U / 1000W Titanium level (96%) in 1U

Management
Open Industry Standard IPMI, Redfish APIs, Full Suite of Management Software Including SuperCloud Composer

Processors
Dual 3rd Gen Intel Xeon Scalable processors up to 185W TDP

Drives
Up to 6x hot-swappable SATA/SAS drives

Input/Output
2 PCI-E 4.0 x16 slots, M.2 slot(s)

Services
Worldwide Global Services

1U 2-Node TwinPro

X12

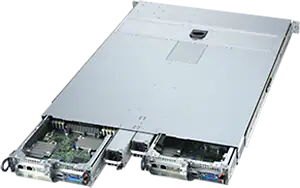

SYS-120TP-DTTR

1U 2-node TwinPro with 4 2.5" SATA drives per node

  • CPU: 2
  • CPU Type: Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 10G
  • Power Supply: Two 1000W redundant power supplies with PMBus
  • Interface: SATA (Native)
    SAS (Optional)

X12

SYS-120TP-DC8TR

1U 2-node TwinPro with 4 2.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 10G
  • Power Supply: Two 1000W redundant power supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X12

SYS-120TP-DC9TR

1U 2-node TwinPro with 4 2.5" SAS/SATA drives per node and HW RAID

  • CPU: 2
  • CPU Type: Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 10G
  • Power Supply: Two 1000W redundant power supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X11

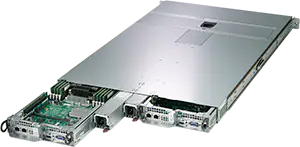

SYS-1029TP-DTR

1U 2-node TwinPro with 4 2.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual Socket P (LGA 3647) 2nd Gen Intel Xeon Scalable Processors (Cascade Lake/Skylake)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 1000W 1U Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X11

SYS-1029TP-DC0R

1U 2-node TwinPro with 4 2.5" SAS3 drives per node

  • CPU: 2
  • CPU Type: Dual Socket P (LGA 3647) 2nd Gen Intel Xeon Scalable Processors (Cascade Lake/Skylake)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 1000W 1U Redundant Power Supplies with PMBus
  • Interface: SATA (Optiona)
    SAS (Native)

X11

SYS-1029TP-DC1R

1U 2-node TwinPro with 4 2.5" SAS3 drives per node

  • CPU: 2
  • CPU Type: Dual Socket P (LGA 3647) 2nd Gen Intel Xeon Scalable Processors (Cascade Lake/Skylake)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 1000W 1U Redundant Power Supplies with PMBus
  • Interface: SATA (Optional)
    SAS (Native)

X10

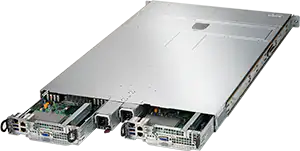

SYS-1028TP-DTR

1U 2-node TwinPro with 4 2.5" SATA3 drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 1G
  • Power Supply: 1000W 1U Redundant Power Supplies with PMBus
  • Interface: SATA (Native)

X10

SYS-1028TP-DC0R

1U 2-node TwinPro with 4 2.5" SAS3 drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 1G
  • Power Supply: 1000W 1U Redundant Power Supplies with PMBus
  • Interface: SAS (Native)

X10

SYS-1028TP-DC1R

1U 2-node TwinPro with 4 2.5" SAS3 drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 1G
  • Power Supply: 1000W 1U Redundant Power Supplies with PMBus
  • Interface: SAS (Native)

X10

SYS-1028TP-DTFR

1U 2-node TwinPro with 4 2.5" SATA3 drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 1G, FDR
  • Power Supply: 1000W 1U Redundant Power Supplies with PMBus
  • Interface: SATA (Native)

X10

SYS-1028TP-DTTR

1U 2-node TwinPro with 4 2.5" SATA3 drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 1G
  • Power Supply: 1000W 1U Redundant Power Supplies with PMBus
  • Interface: SATA (Native)

X10

SYS-1028TP-DC0FR

1U 2-node TwinPro with 4 2.5" SAS3 drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 1G, FDR
  • Power Supply: 1000W 1U Redundant Power Supplies with PMBus
  • Interface: SAS (Native)

X10

SYS-1028TP-DC0TR

1U 2-node TwinPro with 4 2.5" SAS3 drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 1G
  • Power Supply: 1000W 1U Redundant Power Supplies with PMBus
  • Interface: SAS (Native)

X10

SYS-1028TP-DC1FR

1U 2-node TwinPro with 4 2.5" SAS3 drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 1G, FDR
  • Power Supply: 1000W 1U Redundant Power Supplies with PMBus
  • Interface: SAS (Native)

X10

SYS-1028TP-DC1TR

1U 2-node TwinPro with 4 2.5" SAS3 drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 1G
  • Power Supply: 1000W 1U Redundant Power Supplies with PMBus
  • Interface: SAS (Native)

back to top

2U 2-Node TwinPro

X10

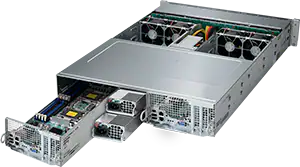

SYS-2028TP-DTR

2U 2-node TwinPro with 8 2.5" SATA drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 8
  • Networking: 2x 1G
  • Power Supply: 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
  • Interface: SATA (Native)

X10

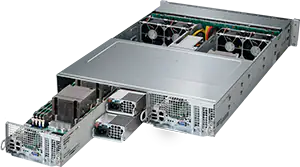

SYS-2028TP-DC0R

2U 2-node TwinPro with 12 2.5" SAS (8)/SATA (4) drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 12
  • Networking: 2x 1G
  • Power Supply: 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-DC1R

2U 2-node TwinPro with 12 2.5" SAS (8)/SATA (4) drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 12
  • Networking: 2x 1G
  • Power Supply: 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-DECR

2U 2-node TwinPro with 12 2.5" SAS3 drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 12
  • Networking: 2x 1G
  • Power Supply: 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
  • Interface: SAS (Native)

X10

SYS-2028TP-DNCR

2U 2-node TwinPro with 12 2.5" SAS (8)/NVMe (4) drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 12
  • Networking: 2x 1G
  • Power Supply: 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
  • Interface: SAS (Native)
    NVMe (Native)

X10

SYS-2028TP-DTFR

2U 2-node TwinPro with 8 2.5" SATA drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 8
  • Networking: 2x 1G, FDR
  • Power Supply: 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
  • Interface: SATA (Native)

X10

SYS-2028TP-DTTR

2U 2-node TwinPro with 8 2.5" SATA drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 8
  • Networking: 2x 1G
  • Power Supply: 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
  • Interface: SATA (Native)

X10

SYS-6028TP-DNCR

2U 2-node TwinPro with 6 2.5" SAS3/NVMe drives per node (Up to 4x NVMe + 2x SAS3 or 6x SAS3)

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 1G
  • Power Supply: 1600W 1U Redundant Power Supplies with PMBus
  • Interface: NVMe (Native)
    SAS (Native)

X10

SYS-2028TP-DC0FR

2U 2-node TwinPro with 12 2.5" SAS (8)/SATA (4) drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 12
  • Networking: 2x 1G
  • Power Supply: 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-DC0TR

2U 2-node TwinPro with 12 2.5" SAS (8)/SATA (4) drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 12
  • Networking: 2x 10G
  • Power Supply: 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-DC1FR

2U 2-node TwinPro with 12 2.5" SAS (8)/SATA (4) drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 12
  • Networking: 2x 1G
  • Power Supply: 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-DC1TR

2U 2-node TwinPro with 12 2.5" SAS (8)/SATA (4) drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 12
  • Networking: 2x 10G
  • Power Supply: 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-DECFR

2U 2-node TwinPro with 12 2.5" SAS3 drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 12
  • Networking: 2x 1G, FDR
  • Power Supply: 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
  • Interface: SAS (Native)

X10

SYS-2028TP-DECTR

2U 2-node TwinPro with 12 2.5" SAS3 drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 12
  • Networking: 2x 10G
  • Power Supply: 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
  • Interface: SAS (Native)

X10

SYS-2028TP-DNCFR

2U 2-node TwinPro with 12 2.5" SAS (8)/NVMe (4) drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 12
  • Networking: 2x 1G, FDR
  • Power Supply: 1600W 1U Redundant Power Supplies with PMBus
  • Interface: NVMe (Native)
    SAS (Native)

X10

SYS-2028TP-DNCTR

2U 2-node TwinPro with 12 2.5" SAS (8)/NVMe (4) drives per node

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 12
  • Networking: 2x 10G
  • Power Supply: 1600W 1U Redundant Power Supplies with PMBus
  • Interface: NVMe (Native)
    SAS (Native)

X10

SYS-6028TP-DNCFR

2U 2-node TwinPro with 6 2.5" SAS3/NVMe drives per node (Up to 4x NVMe + 2x SAS3 or 6x SAS3

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 1G, FDR
  • Power Supply: 1600W 1U Redundant Power Supplies with PMBus
  • Interface: NVMe (Native)
    SAS (Native)

X10

SYS-6028TP-DNCTR

2U 2-node TwinPro with 6 2.5" SAS3/NVMe drives per node (Up to 4x NVMe + 2x SAS3 or 6x SAS3)

  • CPU: 2
  • CPU Type: Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP), Dual Socket R3 (LGA 2011)
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 10G
  • Power Supply: 1600W 1U Redundant Power Supplies with PMBus
  • Interface: NVMe (Native)
    SAS (Native)

back to top

2U 4-Node TwinPro

X12

SYS-220TP-HTTR

2U 4-node TwinPro with 6 2.5" SATA drives per node and dual 10GbE


  • CPU: 2
  • CPU Type: Dual Socket P+ (LGA-4189) 3rd Generation Intel Xeon Scalable Processors
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 10G
  • Power Supply: Two 2200W redundant power supplies with PMBus
  • Interface: SATA (Native)

X12

SYS-620TP-HTTR

2U 4-node TwinPro with 3 3.5" SATA drives per node and dual 10GbE


  • CPU: 2
  • CPU Type: Dual Socket P+ (LGA-4189) 3rd Generation Intel Xeon Scalable Processors
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: 2x 10G
  • Power Supply: Two 2200W redundant power supplies with PMBus
  • Interface: SATA (Native)

X12

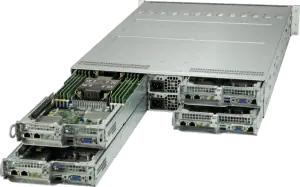

SYS-220TP-HC8TR

2U 4-node TwinPro with 6 2.5" SAS/SATA drives per node and dual 10GbE

  • CPU: 2
  • CPU Type: Dual Socket P+ (LGA-4189) 3rd Generation Intel Xeon Scalable Processors
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 10G
  • Power Supply: Two 2200W redundant power supplies with PMBus
  • Interface: SATA (Native)
    SAS (Optional)

X12

SYS-220TP-HC9TR

2U 4-node TwinPro with 6 2.5" SAS/SATA (HW RAID) drives per node and dual 10GbE

  • CPU: 2
  • CPU Type: Dual Socket P+ (LGA-4189) 3rd Generation Intel Xeon Scalable Processors
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 10G
  • Power Supply: Two 2200W redundant power supplies with PMBus
  • Interface: SATA (Native)
    SAS (Optional)

X12

SYS-620TP-HC8TR

2U 4-node TwinPro with 3 3.5" SAS/SATA drives per node and dual 10GbE

  • CPU: 2
  • CPU Type: Dual Socket P+ (LGA-4189) 3rd Generation Intel Xeon Scalable Processors
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: 2x 10G
  • Power Supply: Two 2200W redundant power supplies with PMBus
  • Interface: SATA (Native)
    SAS (Optional)

X12

SYS-620TP-HC9TR

2U 4-node TwinPro with 3 3.5" SAS/SATA (HW RAID) drives per node and dual 10GbE

  • CPU: 2
  • CPU Type: Dual Socket P+ (LGA-4189) 3rd Generation Intel Xeon Scalable Processors
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: 2x 10G
  • Power Supply: Two 2200W redundant power supplies with PMBus
  • Interface: SATA (Native)
    SAS (Optional)

H12

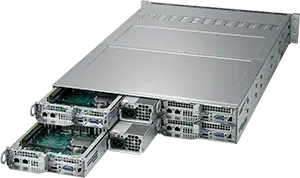

AS-2014TP-HTR

2U 4-node TwinPro with 3 3.5" SATA drives per node


  • CPU: 1
  • CPU Type: Single AMD EPYC 7003/7002 Series Processor
  • DIMM Slots: 8
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: Two 2200W redundant power supplies with PMBus
  • Interface: SATA (Native)

X11

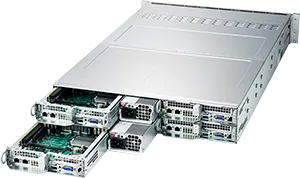

SYS-2029TP-HTR

2U 4-node TwinPro with 6 2.5" SATA3 drives per node


  • CPU: 2
  • CPU Type: Dual Socket P (LGA 3647) 2nd Gen Intel Xeon Scalable Processors
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 2200W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)

X11

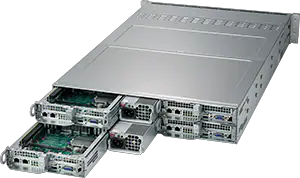

SYS-6029TP-HTR

2U 4-node TwinPro with 3 3.5" SATA3 drives per node

  • CPU: 2
  • CPU Type: Dual Socket P (LGA 3647) 2nd Gen Intel Xeon Scalable Processors
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 2200W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)

X11

SYS-2029TP-HC0R

2U 4-node TwinPro with 6 2.5" SATA3 drives per node

  • CPU: 2
  • CPU Type: Dual Socket P (LGA 3647) 2nd Gen Intel Xeon Scalable Processors
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 2200W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)

X11

SYS-2029TP-HC1R

2U 4-node TwinPro with 6 2.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual Socket P (LGA 3647) 2nd Gen Intel Xeon Scalable Processors
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 2200W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X11

SYS-6029TP-HC0R

2U 4-node TwinPro with 3 3.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual Socket P (LGA 3647) 2nd Gen Intel Xeon Scalable Processors
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 2200W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X11

SYS-6029TP-HC1R

2U 4-node TwinPro with 3 3.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual Socket P (LGA 3647) 2nd Gen Intel Xeon Scalable Processors
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 2200W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-HTR

2U 4-node TwinPro with 6 2.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 1G
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

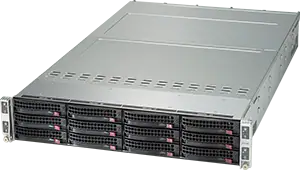

SYS-6028TP-HTR

2U 4-node TwinPro with 3 3.5" SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: 2x 1G
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)

X10

SYS-2028TP-HC0R

2U 4-node TwinPro with 6 2.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 1G
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-HC1R

2U 4-node TwinPro with 6 2.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 1G
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-HTFR

2U 4-node TwinPro with 6 2.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 1G, FDR
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-HTTR

2U 4-node TwinPro with 6 2.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 10G
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-6028TP-HC0R

2U 4-node TwinPro with 3 3.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: 2x 1G
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-6028TP-HC1R

2U 4-node TwinPro with 3 3.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: 2x 1G
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-6028TP-HTFR

2U 4-node TwinPro with 3 3.5" SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: 2x 1G, FDR
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)

X10

SYS-6028TP-HTTR

2U 4-node TwinPro with 3 3.5" SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: 2x 10G
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)

X10

SYS-2028TP-HC0FR

2U 4-node TwinPro with 6 2.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 1G
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-HC0TR

2U 4-node TwinPro with 6 2.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 10G
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-HC1FR

2U 4-node TwinPro with 6 2.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 1G, FDR
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-HC1TR

2U 4-node TwinPro with 6 2.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 2x 10G
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-6028TP-HC0FR

2U 4-node TwinPro with 3 3.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: 2x 1G, FDR
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-6028TP-HC0TR

2U 4-node TwinPro with 3 3.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: 2x 10G
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-6028TP-HC1FR

2U 4-node TwinPro with 3 3.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: 2x 1G, FDR
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-6028TP-HC1TR

2U 4-node TwinPro with 3 3.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: 2x 10G
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-HTR-SIOM

2U 4-node TwinPro with 6 2.5" SATA3 drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 2000W Redundant Power Supplies with PMBus and Reverse Airflow
  • Interface: SATA (Native)

X10

SYS-6028TP-HTR-SIOM

2U 4-node TwinPro with 3 3.5" SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)

X10

SYS-2028TP-HC0R-SIOM

2U 4-node TwinPro with 6 2.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-2028TP-HC1R-SIOM

2U 4-node TwinPro with 6 2.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 2000W Redundant Power Supplies with PMBus
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-6028TP-HC0R-SIOM

2U 4-node TwinPro with 3 3.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 2000W Redundant Power Supplies with PMBus and Reverse Airflow
  • Interface: SATA (Native)
    SAS (Native)

X10

SYS-6028TP-HC1R-SIOM

2U 4-node TwinPro with 3 3.5" SAS/SATA drives per node

  • CPU: 2
  • CPU Type: Dual socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3 family
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 3
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Power Supply: 2000W Redundant Power Supplies with PMBus and Reverse Airflow
  • Interface: SATA (Native)
    SAS (Native)

back to top
