Supermicro BigTwin
The IT Industry's Highest Performing Twin Multi-Node System
Supermicro has grown from a Silicon Valley start-up to a multi-billion dollar Fortune 1000 company. The establishment of the company as a provider of leading enterprise data center solutions has continued to drive impressive and consistent growth for a quarter of a century, impressively achieving 6x revenue growth over the past ten years while being profitable every year since inception.
Featured System

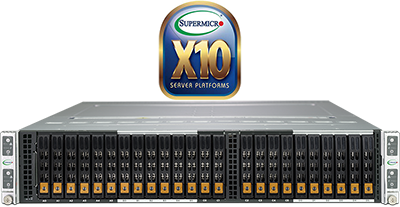

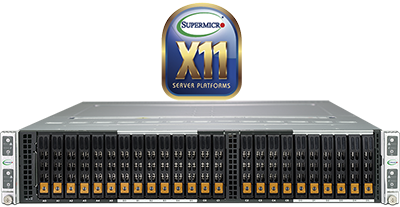

The Supermicro BigTwin is the first and only 2U multi-node system supporting the highest performance processor, memory, storage, I/O and an incredible 30% better thermal capacity. The 5th generation of Supermicro's Twin architecture is fully optimized for today's diverse workloads and architected for further technology breakthroughs.
- Performance: Supporting the latest Intel Xeon Scalable processors up to 205W, the BigTwin achieves incredible performance in a 2U multi-node platform. The latest processors from Intel incorporate Ultra Path Interconnect (UPI) technology for significantly improved communication between CPUs to reduce latency and provide extra bandwidth for intense workloads. Each node of the BigTwin supports up to 3TB DDR4-2666MHz in 24 DIMM slots for dramatically faster and increased memory capacity compared to previous generations of Twin systems. With up to 12 hot-swappable 2.5" drive bays per node, storage performance is accelerated with options for All-Flash NVMe, SAS or SATA drives.
- Density: BigTwin systems boast incredibly high density with up to 4 hot swappable nodes in a 2U form factor, and double the I/O capacity of competitive 2U solutions. Support for Supermicro I/O Module (SIOM) enables flexible networking options of 1G, 10G, 25G, or 100G Ethernet or 100G InfiniBand/Omni-Path and frees up 2 low-profile PCI-E 3.0 x16 expansion slots per node.
- Efficiency: Supermicro's Twin architecture is designed with power and cost efficiency in mind. The BigTwin reduces power consumption with shared cooling and power design, leveraging redundant 2200W high efficiency (96%) power supplies. Maximum compute in a 2U system enables data center footprints to be reduced by 50% compared to standard 2U servers with equivalent performance.
Highlights
Optimized for:
- Virtualization
- Cloud
- Software-defined Storage
- Hosting & Content Delivery
- Hyperscale / Hyperconverge
2U 4/2 hot-swappable 2-socket nodes
- Up to 205W Intel Xeon Scalable processors
- 24 DIMM slots up to 3TB DDR4 memory
- 3 PCI-E 3.0 expansion slots including 1 SIOM slot
Multiple enterprise workloads in a single form factor
- 2.5" SFF and 3.5" LFF drive bays
- All-Flash NVMe, Hybrid NVMe, SAS or SATA
- PCI-E 3.0 x8 and x16 expansion options
Product Features
System
2U enclosure supporting up to 2 or 4 compute nodes
Memory
24 DIMM slots, up to 3TB DDR4 per node (Intel Optane Persistent Memory Ready)
Power
2600/2200W Redundant Titanium Level (96%) Power Supplies
Management
Open Industry Standard IPMI, Redfish APIs, Rack Scale Management
Processors
Dual Intel Xeon Scalable processors up to 205W TDP
Drives
24x 2.5" SFF or 12x 3.5" LFF All-Flash NVMe, SAS3, SATA3 or Hybrid NVMe, SAS3, or SATA3
Input/Output
Up to 2 PCI-E 3.0 x16 slots and 1 SIOM card
Services
Worldwide Global Services
