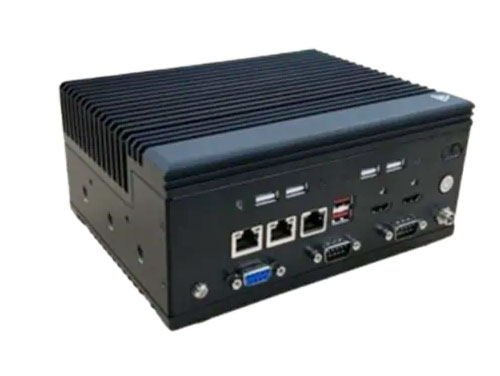

Supermicro SuperServer SYS-E103-14P
Fanless Edge AI System — Intel® Core™ Ultra Series 3, up to 180 TOPS
Click here to jump to more pricing!
Overview:
The Supermicro SYS-E103-14P brings the Intel® Core™ Ultra Series 3 processor into a compact, DIN-rail mountable, fanless edge platform purpose-built for AI inferencing at the point where data is generated. With an integrated GPU and NPU delivering up to 180 platform TOPS of combined AI performance — including up to 50 dedicated TOPS from the integrated NPU 5 — the system runs agentic AI, computer vision, and industrial automation workloads efficiently without requiring a discrete GPU. A wide 0°C to 45°C operating range, rich I/O, and rugged, passively-cooled design make it ideal for retail, manufacturing, physical security, transportation, and logistics.
Key Features:
- Fanless, DIN-rail mountable chassis for rugged, space-constrained deployments
- Intel® Core™ Ultra Series 3 processor with integrated Intel® Arc™ graphics and NPU 5
- Up to 180 platform TOPS of combined AI performance (up to 50 dedicated NPU TOPS)
- Up to 128 GB of high-bandwidth DDR5-5600 memory
- Dual 2.5GbE plus 1GbE networking, with optional PoE and WWAN/5G
- Dual HDMI 2.1 outputs and extensive serial / USB I/O for edge peripherals
- Low-latency, power-efficient inferencing for computer vision and intelligent automation
Specifications:
| Product SKU | |
|---|---|
| SYS-E103-14P | Supermicro SuperServer E103-14P Fanless Edge AI System |
| Processor | |
| CPU | Intel® Core™ Ultra Series 3 processor. Options include Core™ Ultra X7 368H (16 cores with a 12-core Xe3 iGPU), Core™ Ultra 5 336H, and Core™ Ultra 5 335. |
| AI Acceleration | Integrated GPU + NPU 5 — up to 180 platform TOPS combined; NPU delivers up to 50 dedicated TOPS |
| Graphics | Integrated Intel® Arc™ graphics (Xe3) |
| System Memory | |
| Capacity | 2x DDR5 SO-DIMM (dual channel), up to 128 GB DDR5-5600 non-ECC (1.1V) |
| Storage & Expansion | |
| M.2 | 1x PCIe 5.0 x4 M-Key (2242/2280), 1x PCIe 4.0 x2 M-Key (2280); supports up to two NVMe 2280 SSDs 1x M.2 E-Key 2230 (Wi-Fi/BT), 1x M.2 B-Key 3052 with nano-SIM (optional WWAN / LTE / 5G) |
| Networking | |
| LAN | 2x 2.5GbE (Intel® I226-IT, optional PoE) + 1x 1GbE (Intel® I219-LM) |
| Input / Output | |
| USB | 2x USB 3.2 Type-A, 2x USB 2.0 Type-A |
| Display | 2x HDMI 2.1 |
| Serial / GPIO | 2x COM (RS232/RS422/RS485), 1x SMBus 8-bit GPIO (via DB9) |
| Environment & Chassis | |
| Cooling | Fanless (passive) |
| Mounting | DIN-rail mountable |
| Operating Temperature | 0°C to 45°C (storage 0°C to 60°C) |
| Dimensions (W x D x H) | 185 mm x 140 mm x 83 mm |
| Weight | 1.47 kg (net) |
| Operating Systems | Windows (IoT / Pro) and Linux |
Built for AI at the Edge:
- Computer vision & physical security — object detection, safety monitoring, and video analytics
- Manufacturing & industrial automation — quality assurance and real-time control
- Retail & logistics — inventory management and intelligent automation
- Agentic AI inferencing — low-latency, power-efficient processing close to the data source
Documentation:
Download the Supermicro SYS-E103-14P Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
