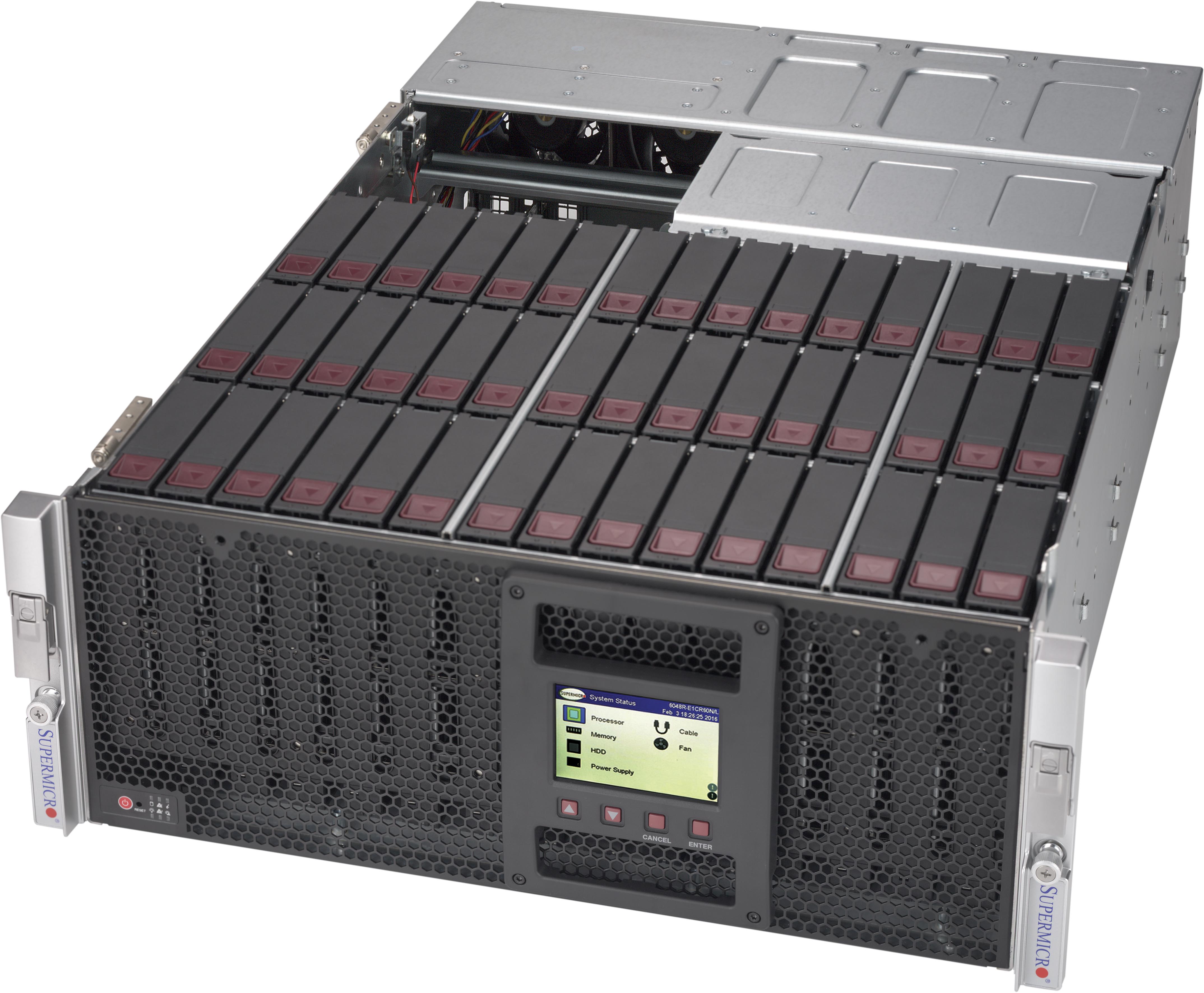

Supermicro SuperChassis 946LE1C-R1K66JBOD
Extreme High Density and High Capacity Storage Chassis support 45 x 3.5"
Supermicro Products
Click here to jump to more pricing!
Specifications:
| Product SKUS | |
|---|---|
| CSE-946LE1C-R1K66JBOD | SuperChassis 946LE1C-R1K66JBOD |
| Form Factor | |
| 4U JBOD storage chassis | |
| Drive Bays | |
| 45 x 3.5" hot-swap SAS/SATA drive bay with SES3 | |
| Qualified SAS Controllers | |
| AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller |
|
| Backplane | |
| 45-port 4U SC946L Top-load SAS3 12Gbps expander backplane, support up to 45x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Front Panel | |
| Buttons | Power On/Off button Unit Identification (UID) button |
| LEDs | 1 Network Activity LEDs Power Status LED Power Fail LED System Information LED |
| System Cooling | |
| Fan | 5 x 80mm rear hot-swap exhaust PWM fan(s) |
| Power Supply | |
| 1600W redundant power supply, Platinum level with PMBus & I2C | |
Pricing Notes:
- Pricing and product availability subject to change without notice.
