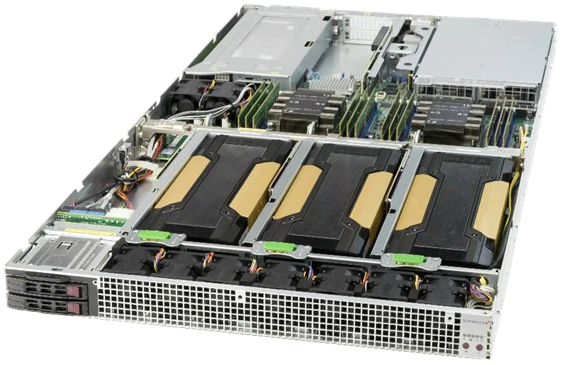

Supermicro GPU SuperServer 1029GQ-TRT
2 Hot-Swap 2.5" SAS/SATA Drive Bays

Overview:

Key Features

• Supports up to 4 NVIDIA GPUs in 1U
• Support Active/Passive GPUs
• GPU health monitoring with Fan speed control

Hardware Features:

• Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, 3 UPI up to 10.4GT/s
• Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 12 DIMM slots
• 4 PCI-E 3.0 x16 (FHFL) slots, 2 PCI-E 3.0 x16 (LP) slots
• 2 Hot-swap 2.5" SAS/SATA  drive bays, 2 Internal 2.5" drive bays
• Support 1x M.2 2242/2260/2280, Support M.2 SATA and NVMe
• 2x 10GBase-T LAN ports via Intel X540
• 9 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control
• 2000W Redundant (2+2) Power Supplies; Titanium Level (96%+)

GPU Solutions - Maximum Acceleration and Cost Efficiency for High Performance Applications

Supermicro's NVIDIA Tesla supported SuperServers establish the company as the true global leader in High-Performance, Enterprise-Class SuperComputing and GreenIT. Generating massively parallel processing power and unrivaled networking flexibility with PCI-E 3.0 expansion slots, 1G or 10G Ethernet, and FDR InfiniBand ports, these systems deliver the highest quality with extreme optimization for the most computationally-intensive applications.

• Performance: Highest parallel peak performance up to 8 NVIDIA Tesla V100 GPUs
• Throughput: Best in class GPU-to-GPU bandwidth with a maximum speed of 300GB/s
• Scalability: Designed for pure direct interconnections between multiple GPU nodes
• Flexibility: Up to four PCI-E 3.0 x16 and for low latency I/O expansion capability
• Design: No GPU preheating for highest sustained parallel performance and unsurpassed reliability
• Efficiency: Redundant Titanium Level power supplies & intelligent cooling control

Specifications:

GPU SuperServer 1029GQ-TVRT Specifications
Motherboard	Super X11DGQ
Processor/Cache
CPU	Dual Socket P (LGA 3647) Intel Xeon Scalable Processors, 3 UPI up to 10.4GT/s Support CPU TDP up to 165W
Cores	Up to 28 Cores with Intel HT Technology
System Memory
Memory Capacity	12 DIMM slots Up to 1.5TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type	2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset	Intel C621 chipset
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity	Intel X540 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC
Input / Output
SATA	4 SATA3 (6Gbps) ports
LAN	2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (front)
Video	1 VGA port
Serial Header	1 Fast UART 16550 header
System BIOS
BIOS Type	AMI 32Mb SPI Flash ROM
Management
Software	Intel Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor 5 Watch Dog
Power Configurations	ACPI / APM Power Management
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	1U Rackmount
Model	CSE-118GQETS-R2K05P2
Dimensions and Weight
Width	17.2" (437mm)
Height	1.7" (43mm)
Depth	35.2" (894mm) 39.3" (997mm) with rails
Package	24" (H) x 8" (W) x 46" (D)
Weight	Net Weight: 45 lbs (20.4 kg) Gross Weight: 58 lbs (26.31 kg)
Available Colors	Black
Front Panel
Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED Network activity LEDs System Overheat LED / Fan fail LED / UID LED
Expansion Slots
PCI-Express	4 PCI-E 3.0 x16 (FHFL) slots 2 PCI-E 3.0 x16 (LP) slots
Drive Bays / Storage
Hot-swap	2 Hot-swap 2.5" SAS/SATA drive bays
Fixed	2 Internal 2.5" drive bays
M.2	Support 1x M.2 2242/2260/2280 Support M.2 SATA and NVMe
System Cooling
Fans	9 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control
Power Supply
Power	2000W Redundant Titanium Level Power Supplies with PMBus
Total Output Power	1000W/1800W/1980W/2000W
Dimension (W x H x L)	73.5 x 40 x 265 mm
Input	100-120Vac / 12.5-9.5A / 50-60Hz 200-220Vac / 10-9.5A / 50-60Hz 220-230Vac / 10-9.8A / 50-60Hz 230-240Vac / 10-9.8A / 50-60Hz 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V	Max: 83.3A / Min: 0A (100-120Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 166.7A / Min: 0A (230-240Vac) Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb	Max: 2.1A / Min: 0A
Output Type	25 Pairs Gold Finger Connector
Certification	UL/cUL/CB/BSMI/CE/CCC Titanium Level
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List:

Parts List - (Items Included)
	Part Number	Qty	Description
Motherboard / Chassis	MBD-X11DGQ	1	Super X11DGQ Motherboard
	CSE-118GQETS-R2K05P2	1	CSE-118GQETS-R2K05P2 Chassis
Add-on Card / Module	AOM-PIO-I2XT-P	1	AOM-PIO-I2XT
Backplane	BPN-SAS3-118GQE	1	2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Cable 1	CBL-0484L	4	SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 2	CBL-PWEX-1026	3	GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin, -25~85C, RoHS
Cable 3	CBL-PWEX-1027	1	GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS
Riser Card	RSC-G-A6	1	1U RHS Active Rear Riser card with 1 PCI-E x16,HF,RoHS
	RSC-G-A66	1	1U LHS Active GPU Riser card with two PCI-E x16 Slots,HF,RoH
	RSC-GR-6-X	3	1U LHS GPU riser card with one PCI-E x16 slot,HF,RoHS
Heatsink / Retention	SNK-P0067PS	2	1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply	PWS-2K05A-1R	2	1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
Fans	FAN-0163L4	8	40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan
Rail Set	MCP-290-11809-0N	1	Rail set, Quick/Quick, Auto Latch, travel 535mm Short Version, Post to Post 685mm
Optional Parts List
	Part Number	Qty	Description
Intel/AMD/Quadro/M10 GPU Cables	CBL-PWEX-1059	3	GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 36CM, 17/20AWG, 8A/pin(17AWG), 6A/pin(20AWG)
	CBL-PWEX-1060	1	GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 16CM, 17/20AWG, 8A/pin(17AWG), 6A/pin(20AWG)
Other GPUs Cables	CBL-PWEX-1061	3	GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 34CM, 17/20AWG
	CBL-PWEX-1062	1	GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 25CM, 17/20AWG
AOC-S3008L-L8i (SAS3)	CBL-SAST-0699	1	Mini SAS HD to 4 SATA 12G
AOC-S3108L-H8IR-16DD (SAS3)	CBL-SAST-0699	1	Mini SAS HD to 4 SATA 12G
AOC-S3108L-H8IR (SAS3)	CBL-SAST-0699	1	Mini SAS HD to 4 SATA 12G
Super Cap for LSI 3108	BKT-BBU-BRACKET-05	1	Mounting Bracket for LSI BBUs
	BTR-TFM8G-LSICVM02	1	LSI Super Cap
TPM	AOM-TPM-9670V	-	SPI capable vertical TPM 2.0 provisioned for client,RoHS
Global Services & Support	OS4HR3/2/1	-	3/2/1-year onsite 24x7x4 service
	OSNBD3/2/1	-	3/2/1-year onsite NBD service
Software	SFT-OOB-LIC	1	OOB Management Package (per node license)
	SFT-DCMS-Single	1	DataCenter Management Package (per node license)

Views:

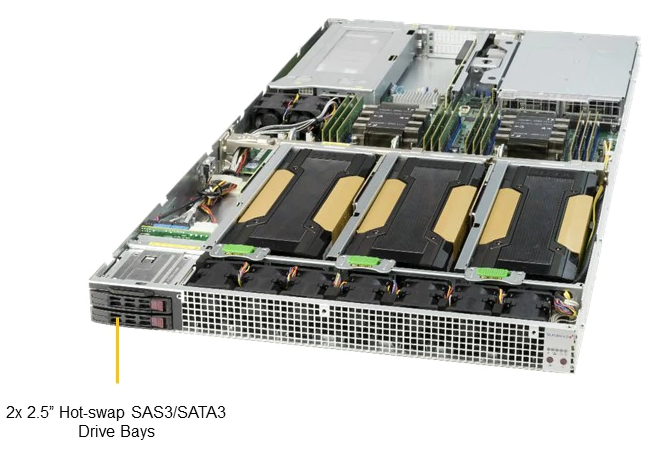

Angled View

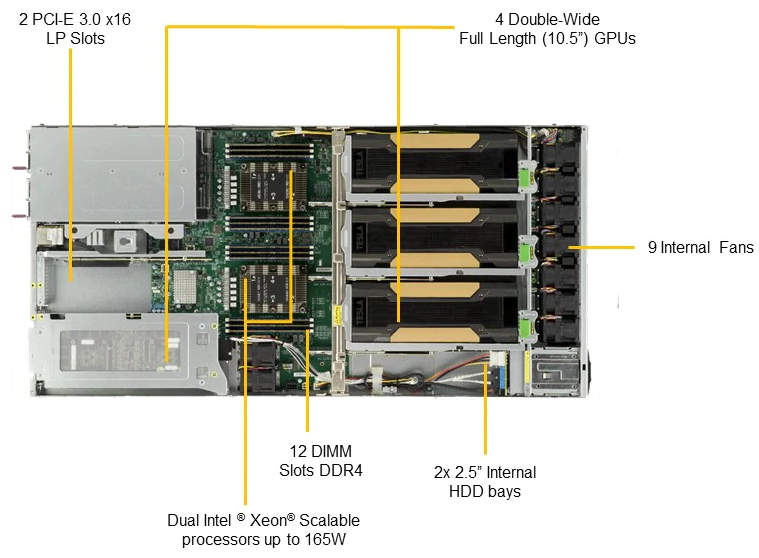

Top View

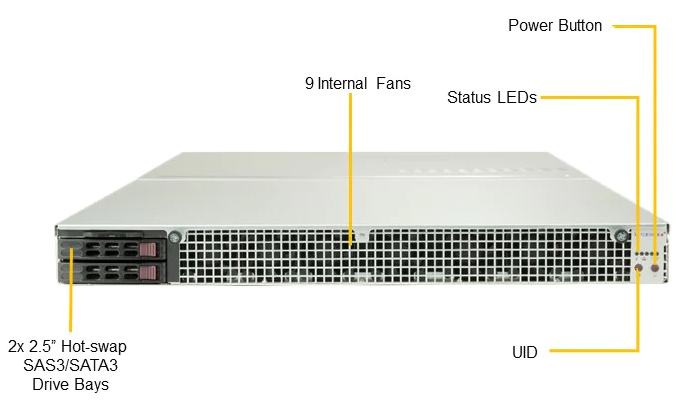

Front View

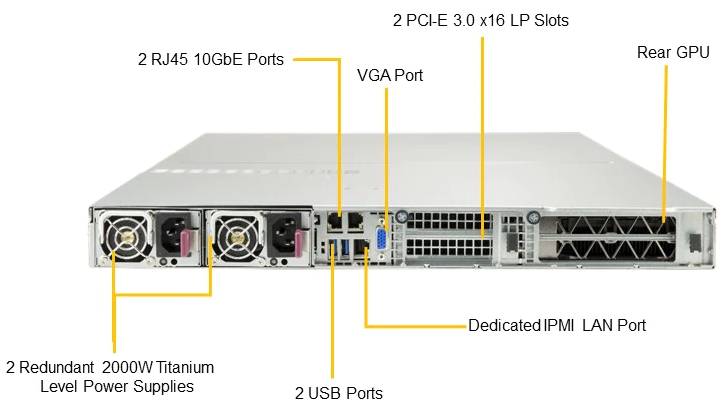

Rear View

Integrated Board:

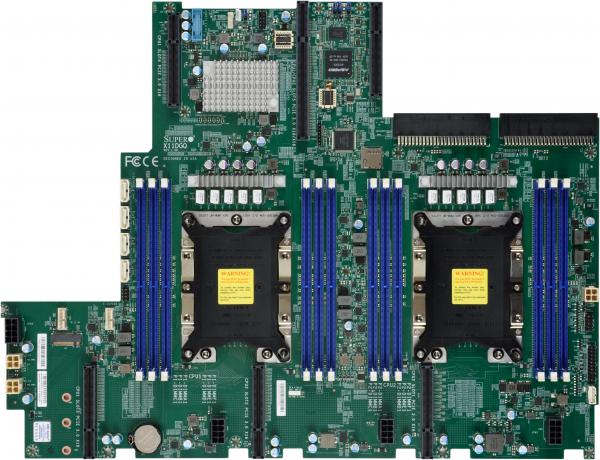

X11DGQ

Key Features

• Intel Xeon Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
• Intel C621
• Up to 1.5TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 1.5TB 3DS ECC LRDIMM, in 12 DIMM slots
• 4 PCI-E 3.0 x16,
  1 PCI-E 3.0 x32 Riser Slot
  M.2 Interface: 1 PCI-E 3.0 x4
  M.2 Form Factor: 2242, 2260, 2280
  M.2 Key: M-Key
  M.2 type: SATA and NVMe
• Intel C621 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Dual LAN with 10GBase-T with Intel X540 10GbE Controller

X11DGQ Specifications
Physical Stats
Form Factor	Proprietary
Dimensions	12.9" x 16.9" (32.77cm x 42.93cm)
Processor/Cache (per Node)
CPU	Intel Xeon Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
System Memory
Memory Capacity	Up to 1.5TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 1.5TB 3DS ECC LRDIMM, in 12 DIMM slots
Memory Type	2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes	RDIMM: 64GB LRDIMM: 64GB 3DS LRDIMM: 128GB
Memory Voltage	1.2V
Error Detection	Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel C621
SATA	Intel C621 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Network Controllers	Dual LAN with 10GBase-T with Intel X540 10GbE Controller
Input / Output
USB	Via proprietary riser
TPM	1 TPM Header
Expansion Slots
PCI-E	4 PCI-E 3.0 x16, 1 PCI-E 3.0 x32 Riser Slot
M.2	M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2242, 2260, 2280 Key: M-Key M.2 type: SATA and NVMe
System BIOS
BIOS Type	AMI UEFI
Management
Software	Intel Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor 5, Watchdog
PC Health Monitoring
Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, 5+1 Phase-switching voltage regulator, Monitors CPU voltages, Supports system management utility, VBAT
FAN	4x 4-pin fan headers (up to 9 fans), Fan speed control, PWM fan speed control
Temperature	CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
LED	CPU / System Overheat LED, UID/Remote UID, Standby alert LED
Other Features	ACPI power management, Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS

Documentation:

Download the Supermicro GPU Solutions 1U Rackmount Datasheet (.PDF)
