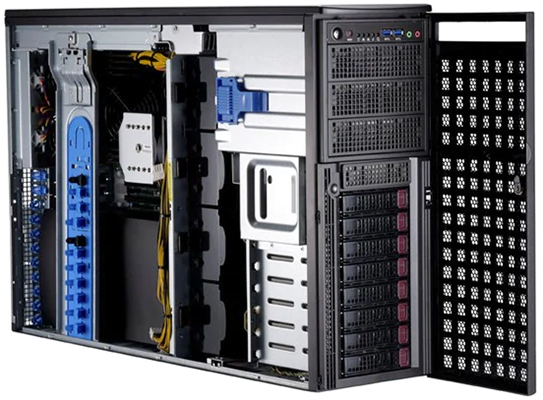

Supermicro GPU SuperWorkstation 7049GP-TRT
8 Hot-swap 3.5" Drive Bays

Overview:

Key Features

• Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, 3 UPI up to 10.4GT/s
• Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
• 4 PCI-E 3.0 x16 (double-width) slots, 2 PCI-E 3.0 x16 (single-width) slots, 1 PCI-E 3.0 x4 (in x8) slot
• 8 Hot-swap 3.5" drive bays
• 2x 10GBase-T LAN ports via Intel X550
• 1 VGA, 2 COM, 5 USB 3.0
• 4 Heavy duty fans, 4 exhaust fans, and 2 active heatsink with optimal fan speed control
• 2200W Redundant Power Supplies Titanium Level (96%)
• GPU Kit for passive GPU/Coprocessor support (MCP-320-74702-0N-KIT)

GPU Solutions - Maximum Acceleration and Cost Efficiency for High Performance Applications

Supermicro's NVIDIA Tesla supported SuperServers establish the company as the true global leader in High-Performance, Enterprise-Class SuperComputing and GreenIT. Generating massively parallel processing power and unrivaled networking flexibility with PCI-E 3.0 expansion slots, 1G or 10G Ethernet, and FDR InfiniBand ports, these systems deliver the highest quality with extreme optimization for the most computationally-intensive applications.

• Performance: Highest parallel peak performance up to 8 NVIDIA Tesla V100 GPUs
• Throughput: Best in class GPU-to-GPU bandwidth with a maximum speed of 300GB/s
• Scalability: Designed for pure direct interconnections between multiple GPU nodes
• Flexibility: Up to four PCI-E 3.0 x16 and for low latency I/O expansion capability
• Design: No GPU preheating for highest sustained parallel performance and unsurpassed reliability
• Efficiency: Redundant Titanium Level power supplies & intelligent cooling control

Specifications:

GPU SuperWorkstation 7049GP-TRT Specifications
Motherboard	Super X11DPG-QT
Processor/Cache
CPU	Dual Socket P (LGA 3647) Intel Xeon Scalable Processors, 3 UPI up to 10.4GT/s Support CPU TDP 70-205W
Cores	Up to 28 Cores with Intel HT Technology
GPU Support	GPU Kit for passive GPU/Coprocessor support (MCP-320-74702-0N-KIT)
System Memory
Memory Capacity	16 DIMM slots Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type	2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset	Intel C621 chipset
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity	Intel X550 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC
Input / Output
SATA	10 SATA3 (6Gbps) ports
LAN	2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) 4 USB 2.0 ports (2 rear, 2 via headers)
Video	1 VGA port
COM Port	1 COM ports (1 rear, 1 Header)
System BIOS
BIOS Type	AMI 32Mb SPI Flash ROM
Management
Software	Intel Node Manager IPMI 2.0 SSM, SPM, SUM SuperDoctor 5
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	4U Rackmountable / Tower Optional Rackmount Kit
Model	CSE-747BTS-R2K20BP
Dimensions and Weight
Width	7.0" (178mm)
Height	18.2" (462mm)
Depth	26.5" (673mm)
Package	27" (H) x 13" (W) x 38" (D)
Weight	Net Weight: 46 lbs (20.9 kg) Gross Weight: 62 lbs (28.1 kg)
Available Colors	Dark Gray
Front Panel
Buttons	Power On/Off button System Reset button
LEDs	Power status LED Hard drive activity LED Network activity LEDs System Overheat & Power Fail LED
Ports	2 Front USB 3.0 Ports
Expansion Slots
PCI-Express	4 PCI-E 3.0 x16 (double-width) slots 2 PCI-E 3.0 x16 (single-width) slots 1 PCI-E 3.0 x4 (in x8 slot)
Drive Bays / Storage
Hot-swap	8 Hot-swap 3.5" drive bays Optional 4x 2.5" NVMe supported
M.2	1 NVMe based M.2 SSD Form Factors: 2280, 22110
Backplane
Backplane	16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5" SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices
System Cooling
Fans	4 Heavy duty fans 2 Rear exhaust fans 2 Optional Rear fans (required for Passive GPUs)
Heatsink	2 Active heatsink with optimal fan speed control
Power Supply
Power	2200W or 2000W Redundant Power Supplies with PMBus
Total Output Power	1200W with Input 100-127Vac 1800W with Input 200-220Vac 1980W with Input 220-230Vac 2090W with Input 230-240Vac 2200W with Input 220-240Vac (for UL/cUL use only) 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency	50-60Hz
Dimension (W x H x L)	76 x 40 x 336 mm
+12V	Max: 100A / Min: 0A (100-127Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 174.17A / Min: 0A (230-240Vac) Max: 183.3A / Min: 0A (220-240Vac)
5VSB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	UL/cUL/CB/BSMI/CE/CCC Titanium Level
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List:

Parts List - (Items Included)
	Part Number	Qty	Description
Motherboard / Chassis	MBD-X11DPG-QT	1	Super X11DPG-QT Motherboard
	CSE-747BTS-R2K20BP	1	4U Chassis
Backplane	BPN-SAS3-747TQ-N4	1	8-port 4U/Tower SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
Cable 1	CBL-0188L-02	2	MINI SAS-4 SATA,INT,64/54/44/34CM,64CM SB,30AWG
Cable 2	CBL-PWEX-1040	4	PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AWG, 10.5A/pin(16AWG), 8A/pin(20AWG), -25~85C,RoHS
Parts	MCP-260-00042-2N	1	STD I/O shield for X9/X10/X11 server MB with EMI Gasket & Mylar
Manual	MNL-2045-QRG	1	7049GP-TRT Quick Reference Guide
Heatsink / Retention	SNK-P0070APS4	2	4U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform
Power Supply	PWS-2K20A-1R	2	1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
FAN 1	FAN-0082L4	2	80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
FAN 2	FAN-0114L4	2	92x38mm 4-PIN PWM FAN W/ HUS for SC747
FAN 3	FAN-0138L4	2	92x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU
Power Distributor	PDB-PT747-6824	1	Power Distributor for 4U GPU solution
Optional Parts List
	Part Number	Qty	Description
Mounting Rails	MCP-290-00059-0B	-	Rail set+handles, quick/quick, optional for 4U 17.2"W tower
AOC Dummy Assembly	MCP-240-00096-0N	-	SC747B GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack
HDD Converter	MCP-220-93801-0B	-	Black Hotswap Gen 6 3.5 to 2.5 HDD Tray (SC747, 936, 938 and Blade)
Passive GPU Kit	MCP-320-74702-0N-KIT	1	X11 GPU Kit for passive GPU/Coprocessor support
Front Bezel	MCP-210-74703-0B	-	Front bezel cover (for 5.25" bay) for rackmount
Add-on Card Dummy	MCP-240-00096-0N	-	GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack
Intel VROC RAID Key	AOC-VROCINTMOD	1	Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
	AOC-VROCSTNMOD	1	Intel VROC Standard, RAID 0, 1, 10
	AOC-VROCPREMOD	1	Intel VROC Premium, RAID 0, 1, 5, 10
Global Services & Support	OS4HR3/2/1	-	3/2/1-year onsite 24x7x4 service
	OSNBD3/2/1	-	3/2/1-year onsite NBD service
Software	SFT-OOB-LIC	1	OOB Management Package (per node license)
	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
NVMe Kit
	Part Number	Qty	Description
NVMe AOC	AOC-SLG3-4E4T-O	1	4 Port NVMe PCIE X16 Retimer,HF
Cable	CBL-SAST-0847	4	OCuLink v.1.0 ,INT,PCIe NVMe SSD, 76CM, 11D38F27D,34AWG,RoHS
NVMe drive Converter	MCP-220-00150-0B	4	NVMe version of 3.5" HDD Tray (Convert 3.5" to 2.5" for 747/936/938)
DVD Kit
	Part Number	Qty	Description
DVD-RW with Cable	DVM-LITE-DVDRW24-HBT	1	BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
	CBL-0082L	1	Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
	CBL-0044L	1	SATA CABLE 57.5CM FLAT S-S PBF.26AWG flat

Views:

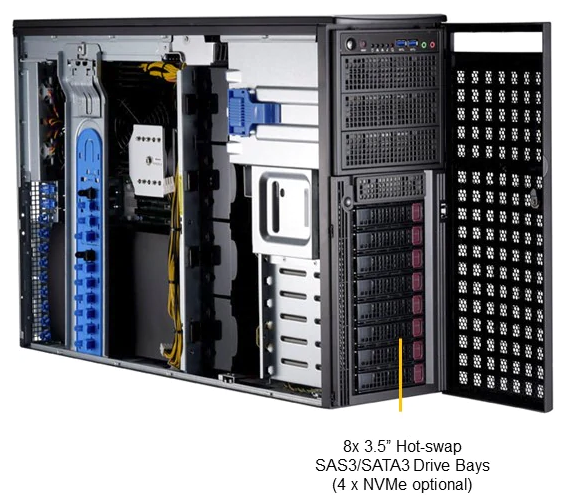

Angled View

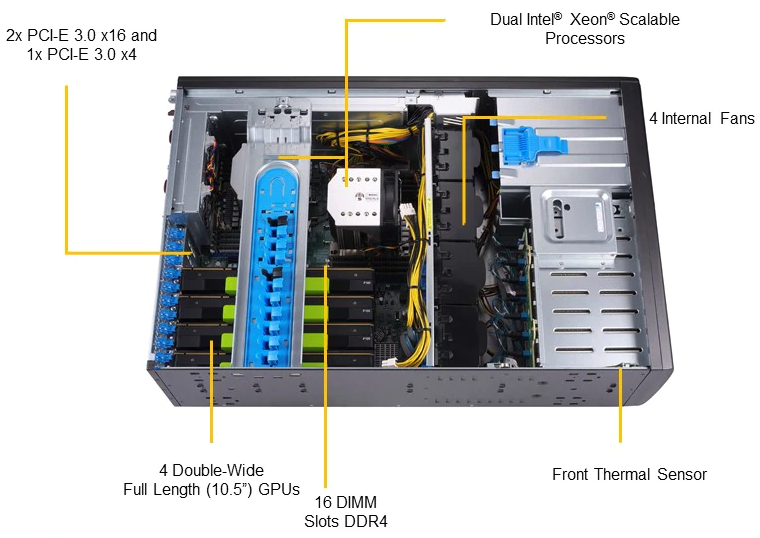

Top View (CPU)

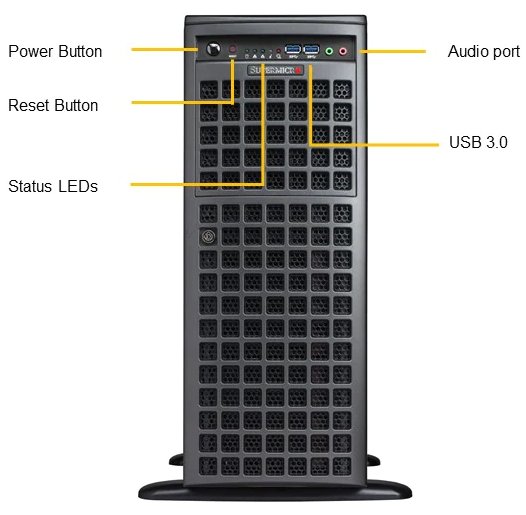

Front View

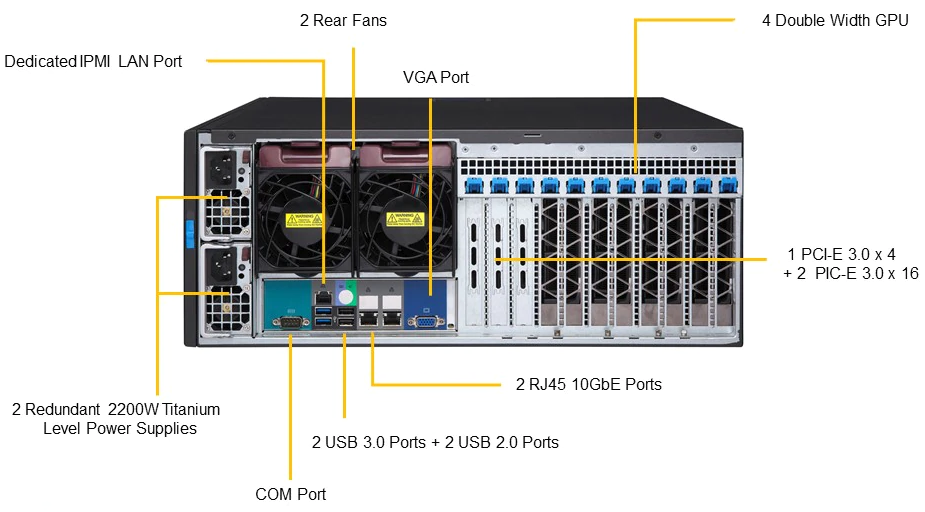

Rear View

Integrated Board:

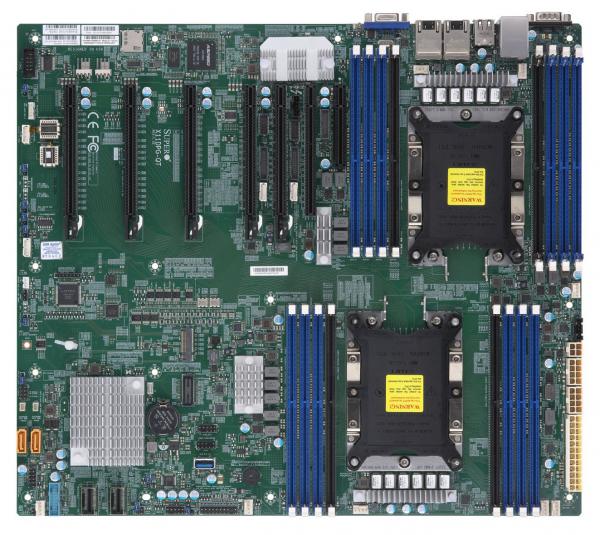

X11DPG-QT

Key Features

• Intel Xeon Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
• Intel C621
• Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
• 6 PCI-E 3.0 x16,
  1 PCI-E 3.0 x4 (in x8 slot)
  M.2 Interface: PCI-E 3.0 x4
  M.2 Form Factor: 2280, 22110
  M.2 Key: M-Key
• Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
• Dual LAN with Intel X550 10GBase-T Ethernet Controller
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• 5 USB 3.0 ports, 4 USB 2.0 ports
• HD Audio with optical S/PDIF

X11DPG-QT Specifications
Physical Stats
Form Factor	Proprietary
Dimensions	15.12" x 13.2" (38.4cm x 33.53cm)
Processor/Cache (per Node)
CPU	Intel Xeon Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
Cores / Cache	Up to 28 cores
System Memory
Memory Capacity	Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type	2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes	RDIMM: 64GB LRDIMM: 128GB 3DS LRDIMM: 128GB
Memory Voltage	1.2V
On-Board Devices
Chipset	Intel C621
SATA	Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Network Controllers	Dual LAN with Intel X550 10GBase-T Ethernet Controller
Audio	7.1 HD Audio Header
Graphics	Aspeed AST2500 BMC
Input / Output
SATA	10 SATA3 (6Gbps) port
USB	4 USB 2.0 ports (2 rear + 2 headers) 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output	1 VGA D-Sub Connector port
Serial Port / Header	2 COM Ports (1 rear, 1 header)
TPM	1 TPM Header
Expansion Slots
PCI-E	6 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 (in x8 slot)
M.2	M.2 Interface: PCI-E 3.0 x4 Form Factor: 2280, 22110 Key: M-Key
System BIOS
BIOS Type	AMI UEFI
BIOS Features	Plug and Play (PnP) ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1
Management
Software	Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Power Configurations	ACPI Power Management
PC Health Monitoring
Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 5+1 Phase-switching voltage regulator, Chassis intrusion header, HT, Supports system management utility, VBAT
FAN	10x 4-pin fan headers (up to 10 fans), Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed contro
Temperature	N/A
LED	CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features	Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS
Operating Environment
Environmental Spec.	Operating Temperature Range: 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range: 8% - 90% (non-condensing) Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
