Supermicro X10 Generation BigTwin
Enterprise Optimized Hyper-Converged Infrastructure

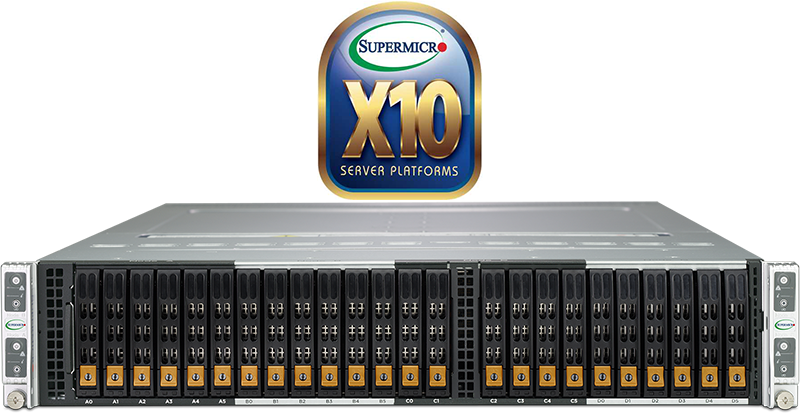

Supermicro X10 Generation BigTwin

Introducing BigTwin, the IT industry’s highest performing twin multi-node system with 4 nodes in 2U supporting the highest performance 205-watt DP Intel Xeon E5-2600 v4/v3 product families, a full 24 DIMMs of memory per node, 24 All-Flash NVMe or hybrid drives, three PCI-E 3.0 x16 I/O options per node, and an industry leading 30% better thermal capacity for maximum performance, efficiency and free air cooling (1.05 PUE). With Supermicro’s 96%+ high-efficiency, fully redundant 2200W, 2600W PowerStick design and advanced thermal architecture. The BigTwin is optimized for today and future proofed for the next generation of technology breakthroughs advancements, including new generation Intel Skylake processors.

2.5" Drive Bays


SuperServer 2028BT-HNC1R+

SuperServer 2028BT-HNC1R+

BigTwin 4 NVMe/SAS3/SATA3 + 2 SAS3/SATA3 per Nod

  • 4 DP nodes in 2U; depth 28.75", Each Node:
  • Dual Socket R3 (LGA 2011) support: Intel Xeon processor E5-2600 v4/v3 family
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2400MHz
  • 1 PCI-E 3.0 x16 Low-profile slot, 1 Networking SIOM card support
  • At least one network card must be bundled
  • 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
  • SAS3 support via Broadcom 3108; HW RAID 0, 1, 5, 6, 10, 50, 60
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

SuperServer 2028BT-HNR+

SuperServer 2028BT-HNR+

BigTwin 24 NVMe support, 6 NVMe per Node

  • 4 DP nodes in 2U; depth 28.75", Each Node:
  • Dual Socket R3 (LGA 2011) support: Intel Xeon processor E5-2600 v4/v3 family
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2400MHz
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • At least one network card must be bundled
  • 6 Hot-swap 2.5" NVMe drive bays per node
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) High-efficiency Power Supplies

SuperServer 2028BT-HNC0R+

SuperServer 2028BT-HNC0R+

BigTwin 16 NVMe support, 4 NVMe/SAS3/SATA3 + 2 SAS3/SATA3 per Node

  • 4 DP nodes in 2U; depth 28.75", Each Node:
  • Dual Socket R3 (LGA 2011) support: Intel Xeon processor E5-2600 v4/v3 family
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2400MHz
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • At least one network card must be bundled
  • 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
  • SAS3 support via Broadcom 3008; IT mode
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) High-efficiency Power Supplies

SuperServer 2028BT-HTR+

SuperServer 2028BT-HTR+

BigTwin 6 SATA3 per Node

  • 4 DP nodes in 2U; depth 28.75", Each Node:
  • Dual Socket R3 (LGA 2011) support: Intel Xeon processor E5-2600 v4/v3 family
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2400MHz
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • At least one network card must be bundled
  • 6 Hot-swap 2.5" SATA3 drive bays per node
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) High-efficiency Power Supplies

3.5" Drive Bays


SuperServer 6028BT-HNC0R+

SuperServer 6028BT-HNC0R+

BigTwin 3 NVMe/SAS3 per Node

  • 4 DP nodes in 2U; depth 30.5", Each Node:
  • Dual Socket R3 (LGA 2011) support: Intel Xeon processor E5-2600 v4/v3 family
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2400MHz
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • At least one network card must be bundled
  • 3 Hot-swap 3.5” NVMe/SAS3 drive bays per node
  • SAS3 support via Broadcom 3008; IT mode
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies
