Supermicro SuperStorage 136R-NR32JBF
32 Hot-Swap NVMe Ruler SSDs


Supermicro SuperStorage 136R-NR32JBF

Supermicro Products
Supermicro SuperStorage Bundle
Supermicro SuperStorage 136R-NR32JBF with 24x Intel DC P4500 8TB NVMe PCIe Rulers
Including Eight 1.0M External Cable NVMe PCIe for JBOD (CBL-SAST-1035-1)
#SSG-136R-NR32JBF-BUN
Our Price: $100,971.00

Click here to jump to more pricing!

Overview:

Due to the complexity of integration, this product is sold as a completely assembled system only (including but not limited to CPU, memory, and HDDs).

Key Features

  • High Throughput Ingest
  • High Density Hot Storage
  • HPC / Data Analytics
  • Media/Video Streaming
  • Content Delivery Network (CDN)
  • Big Data Top of Rack Storage

Hardware Features:

  • Supports 32 Hot-swap NVMe Ruler SSDs
  • Individual SSD power cycling
  • 4 PCI-E x16 IO ports, 2 PCI-E x16 slots
  • IPMI management with dedicated LAN
  • 1000W Redundant Power Supplies Titanium Level (96%)

NVM Express, 80 Plus Titanium, 96 Titanium

Efficiently Deploying Supermicro Disaggregated Storage w/Intel “Ruler”

Intel and Supermicro delve into the innovative Intel "Ruler" form factor NVMe SSDs and discuss how both companies are delivering efficient disaggregated storage solutions to the market. In this technical webinar, you'll learn all about the new Intel SSD DC P4500 in the "Ruler" form factor, how it delivers value for data center customers in disaggregated storage use cases, and the roadmap of products being delivered in high volume today.

Specifications:


SuperStorage 136R-NR32JBF (Black) Specifications
System Overview
Form Factor and Storage
  • 1U Form factor
  • 32x ruler drive slots
Switch Architecture JBOF Switch
Networking Port 2 RJ45 Dedicated IPMI LAN ports
Management Interface Support for IPMI v.2.0
Front Panel
Buttons
  • Power On/Off button
  • Reset button
  • UID button
LEDs
  • Power LED
  • System Status LED
  • SSD Status LED
  • Drive activity LEDs
  • Network activity LEDs
Operating Environment / Compliance
RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
RoHS RoHS Compliant
EMC FCC, CE, VCCI, C-tick
Safety UL Listed, CB/IEC
Chassis
Form Factor 1U Rackmount
Model CSV-136TS-R1K04JP-R2
Dimensions and Weight
Width 17.26" (438.4mm)
Height 1.71" (43.6mm)
Depth 31.95" (811.7mm)
Weight
  • Net Weight: 49 lbs (22.2kg)
  • Gross Weight: 65 lbs (29.5kg)
Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 slots
  • 4 PCI-E 3.0 x16 Mini-SAS HD ports
Drive Bays / Storage
Hot-swap Dual Drawer/Tray with a total of 32 NVMe Ruler SSDs
System Cooling
Fans 8x 40mm Hot-swap cooling fans
Power Supply
Power 1000W Redundant Power Supplies with PMBus
Total Output Power 800W/1000W
Dimension (W x H x L) 73.5 x 40 x 185 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
12Vsb Max: 2.1A / Min: 0A
Output Type 25 Pairs Gold Finger Connector
Certification 9680Plus TitaniumUL/cUL/CB/BSMI/CE/CCC
Titanium Level

Parts List:


Parts List - (Items Included)
  Part Number Qty Description
Chassis CSE-136TS-R1K04JP-U2 1 1U 32-Bay JBOF chassis with U.2 sleds 1000W Titanium PWS
Backplane BPN-EDS3-136P1 2 1U Ruler NVMe backplane support 16x Ruler slots, used in 1U 32 Ruler dense storage system
BPN-NVME3-136PL-J 1 JBOF/NVMf controller for 1U SSG-136R-N32JBF dense storage system
Software SFT-DCMS-SINGLE 1 Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF
Power Supply PWS-1K04A-1R 2 1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm)
FAN 1 FAN-0188L4 8 40x40x56 mm, 23.3K-20.3K RPM, Hot-swappable Counter-rotating
Optional Parts List
  Part Number Qty Description
Front bezel kit MCP-210-13603-0B - Front bezel kit (with mounting brackets and keys) for 136/136H ruler chassis
Cable CBL-SAST-1035-1
CBL-SAST-1035-2
CBL-SAST-1036-1
CBL-SAST-1036-2
CBL-SAST-1037-1
CBL-SAST-1037-2
-
-
-
-
-
-
MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,1M,30AWG,RoHS
MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,1M,30AWG,RoHS
MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,2M
MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,2M,30AWG,RoHS
MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,3M,28AWG,RoHS
MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,3M,30AWG,RoHS

Views:

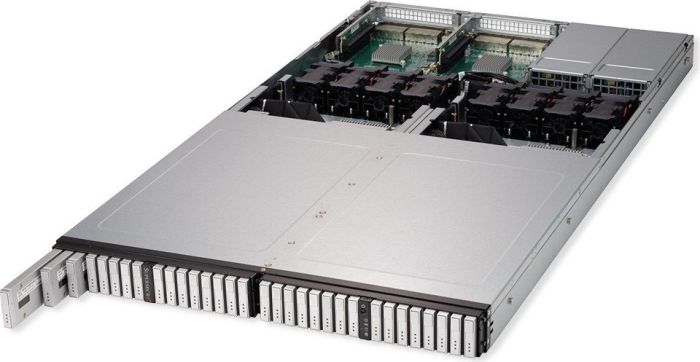

Angled View

Angled View

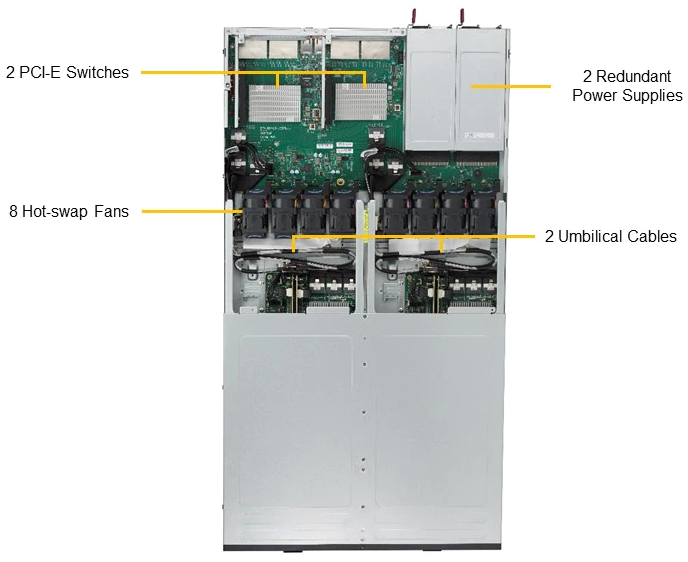

Top View

Top View

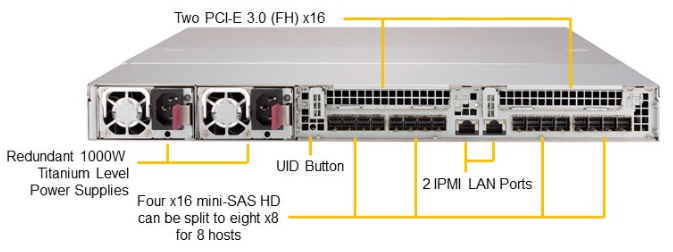

Rear View

Rear View
