Supermicro GPU SuperServer 4029GP-TVRT
16 Hot-Swap 2.5" SAS/SATA Drive Bays


Supermicro SuperServer 4029GP-TVRT

Supermicro Products
Supermicro SuperServer Bundle
Supermicro GPU SuperServer 4029GP-TVRT with 2x Samsung PM863a 240GB 2.5" SATA Hard Drives
Including Two Intel Xeon Silver 4110 Processor (11M Cache, 2.10 GHz) (P4X-SKL4110-SR3GH), Four 16GB 288-Pin DDR4 2666 Server Memory (MEM-DR416L-SL04-ER26), Four NVIDIA Tesla V100 SXM2 16GB Graphic Card (GPU-NVTV100-SXM2), Four Pascal 2U Mylar GPU Dummy for CSE-R422BG (MCP-310-42203-0B), Supermicro Out of Band (OOB) Software License Key (SFT-OOB-LIC)
#SYS-4029GP-TVRT-BUN
Our Price: $45,808.00

Click here to jump to more pricing!

Overview:

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 4 DIMMs, 4 GPUs installed).

Key Features

  • Artificial Intelligence
  • Big Data Analytics
  • High-performance Computing
  • Research Lab/National Lab
  • Astrophysics, Business Intelligence

Hardware Features:

  • Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, 3 UPI up to 10.4GT/s
  • Up to 3TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 24 DIMM slots
  • 4 PCI-E 3.0 x16 (LP) (GPU tray for GPUDirect RDMA), 2 PCI-E 3.0 x16 (LP, CPU tray)
  • Support 8 Tesla V100 with 300GB/s NVLINK
  • Dual 10GBase-T LAN with Intel X540
  • 16 Hot-swap 2.5" SAS/SATA drives (Optional 8x NVMe drives supported), 2 NVMe based M.2 SSD
  • 8x 92mm cooling fans
  • 2200W Redundant (2+2) Power Supplies; Titanium Level (96%+)

NVIDIA Tesla, X11, Intel Xeon Platinum, 80 Plus Titanium, 96 N X11, Intel Xeon Platinum, 80 Plus Titanium, 96 Titanium

GPU Solutions - Maximum Acceleration and Cost Efficiency for High Performance Applications

Supermicro's NVIDIA Tesla supported SuperServers establish the company as the true global leader in High-Performance, Enterprise-Class SuperComputing and GreenIT. Generating massively parallel processing power and unrivaled networking flexibility with PCI-E 3.0 expansion slots, 1G or 10G Ethernet, and FDR InfiniBand ports, these systems deliver the highest quality with extreme optimization for the most computationally-intensive applications.

  • Performance: Highest parallel peak performance up to 8 NVIDIA Tesla V100 GPUs
  • Throughput: Best in class GPU-to-GPU bandwidth with a maximum speed of 300GB/s
  • Scalability: Designed for pure direct interconnections between multiple GPU nodes
  • Flexibility: Up to four PCI-E 3.0 x16 and for low latency I/O expansion capability
  • Design: No GPU preheating for highest sustained parallel performance and unsurpassed reliability
  • Efficiency: Redundant Titanium Level power supplies & intelligent cooling control

Specifications:


GPU SuperServer 4029GP-TVRT Specifications
Motherboard Super X11DGO-T
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel Xeon Scalable Processors, 3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores Up to 28 Cores with Intel HT Technology
GPU Support NVIDIA Tesla V100 SXM2 GPU
System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 1TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset Intel C621 chipset
SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity Dual Port 10GBase-T from Intel X540 Ethernet Controller
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Input / Output
SATA 8 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB 2 USB 3.0 ports (front)
Video 1 VGA Connector
COM Port 1 COM port (header)
System BIOS
BIOS Type AMI 32Mb SPI Flash ROM
BIOS Features
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • SSM, SUM
  • SuperDoctor 5
  • Watchdog
Chassis
Form Factor
  • 4U Rackmountable
  • Rackmount Kit (MCP-290-31401-0N)
Model CSE-R422BG-1
Dimensions and Weight
Width 17.6" (447mm)
Height 7.0" (178mm)
Depth 31.7" (805mm)
Weight
  • Net Weight: 80 lbs (36.2 kg)
  • Gross Weight: 135 lbs (61.2 kg)
Available Colors Black
Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 (LP, GPU tray for GPUDirect RDMA) slots
  • 2 PCI-E 3.0 x16 (LP, CPU tray) slots or up to 8x 2.5" NVMe Storage Devices
Drive Bays / Storage
Hot-swap
  • 16 Hot-swap 2.5" SAS/SATA drive bays
  • Optional 8x 2.5" NVMe supported
M.2
  • 2 NVMe based M.2 SSD
  • Form Factors: 2260, 2280, 22110
Backplane
Backplane 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5" SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices
System Cooling
Fans
  • 8x 92mm Cooling Fans
  • 4x 80mm Cooling Fans
Power Supply
Power 2200W Redundant Titanium Level Power Supplies with PMBus
Total Output Power 1200W/1800W/1980W/2090W/2200W (UL/cUL only)
Dimension (W x H x L) 106.5 x 82.4 x 203.5 mm
Input
  • 1200W: 100-127 Vac / 14-11 A / 50-60 Hz
  • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
  • 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz
  • 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz
  • 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only)
  • 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only)
  • 2090W: 230-240 Vdc / 10-9.8 A (CCC only)
+12V
  • Max: 100A / Min: 0A (1200W)
  • Max: 150A / Min: 0A (1800W)
  • Max: 165A / Min: 0A (1980W)
  • Max: 174.17A / Min: 0A (2090W)
  • Max: 183.3A / Min: 0A (2200W)
  • Max: 174.17A / Min: 0A (2090W)
12Vsb Max: 2A / Min: 0A
Output Type Gold Finger (connector on M/P)
Certification 9680Plus TitaniumUL/cUL/CB/BSMI/CE/CCC
Titanium Level
Operating Environment
RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List:


Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X11DGO-T  1 Super X11DGO-T Motherboard
MBD-X10DGO-SXMV-P 1 V100 SXM2 GPU Board
CSE-R422BG-1 1 CSE-R422BG-1 Chassis
Backplane BPN-MB-R422  1 Pascal 4U midplane, 2U Pascal node on top, and 2U CPU node on bottom. Support 8x fan/power module at rear side.,RoHS
BPN-SAS3-213A-N8 1 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-0174L 4 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH
Cable 2 CBL-PWCD-0174-IS 4 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,RoHS/REACH
Cable 3 CBL-PWEX-0979 3 2X4F/GPU-White/P4.2 to TWO 1X4F/P5.08, (5,12V),48/51CM,18AWG
Cable 4 CBL-SAST-0550 2 MINI SAS HD,12G,INT,25CM,30AWG
Cable 5 CBL-SAST-0934-12 4 Oculink-Oculink X8 Cable 50cm 34AWG,RoHS
Cable 6 CBL-SAST-0935-12 4 Oculink-Oculink X8 Cable 60cm 34AWG,RoHS
Parts MCP-220-42204-0N-PACK 1 Single pack R422BG 2U GPU tray (2U, 8 Pascal / Volta GPU),Ro
Power Supply PWS-2K21A-2R 4 2U 2200W 90-264VAC/47-63Hz, or wide DC input 180Vdc~300Vdc
PWS-DF004-1F 4 12Vdc input redundant FAN module power supports I2C function
Heatsink / Retention SNK-P0068APS4 2 2U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform
SNK-P4003P 8 2U Passive GPU Heat Sink for NVIDIA Pascal and Volta GPUs in SYS-4028GR-TXR/TXRT Series Servers
Optional Parts List
  Part Number Qty Description
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Optional NVMe Kit
  Part Number Qty Description
Cable CBL-SAST-1021 1 Oculink-8 lanes to 2x Oculink 4 lanes, 30cm 34AW
NVMe drive Tray MCP-220-00121-0B 2 Black Gen-3 2.5" NVMe drive tray, Orange tab with lock

Views:

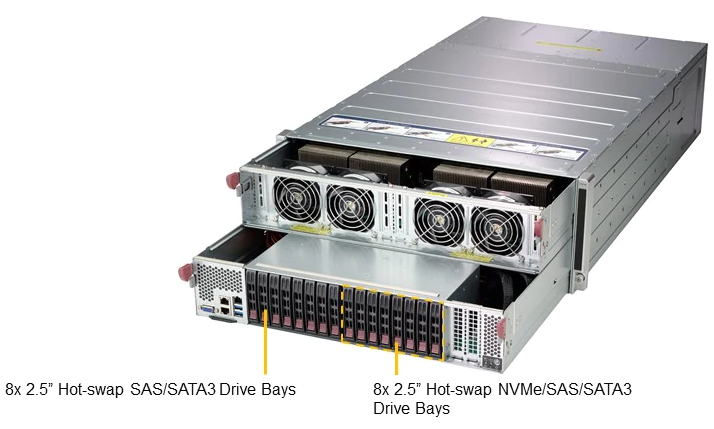

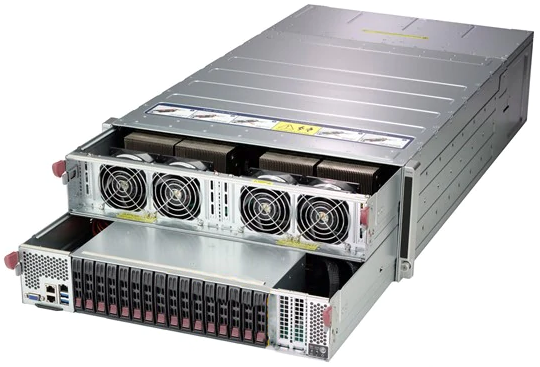

Angled View

Angled View

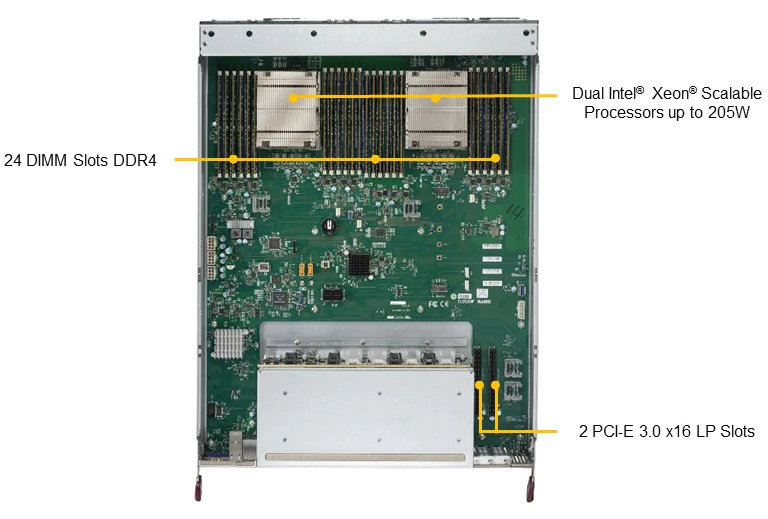

Top View (CPU)

Top View (CPU)

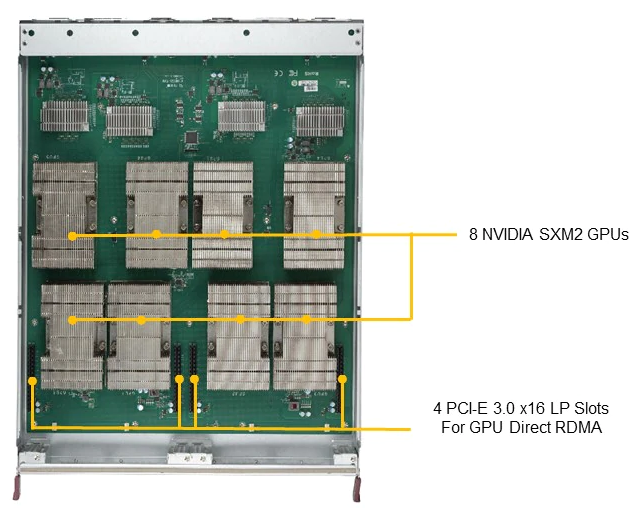

Top View (GPU)

Top View (GPU)

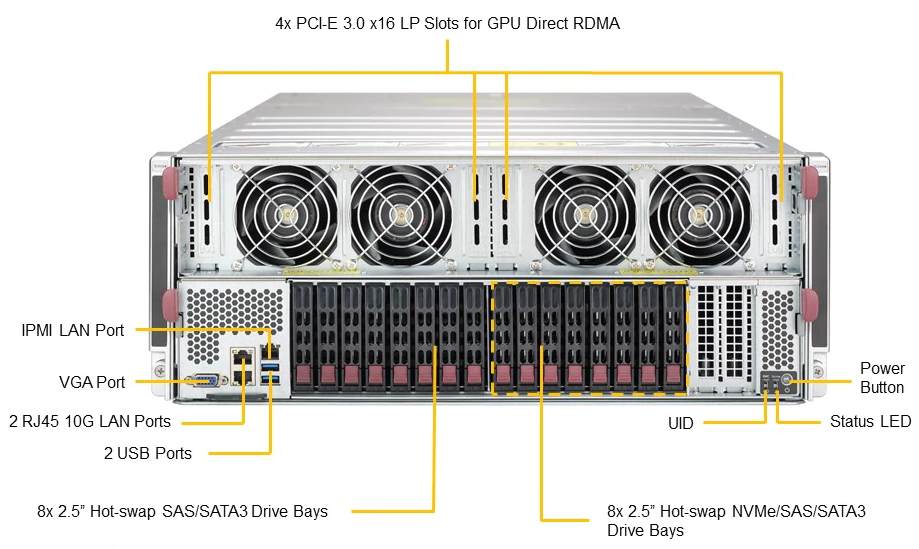

Front View

Front View

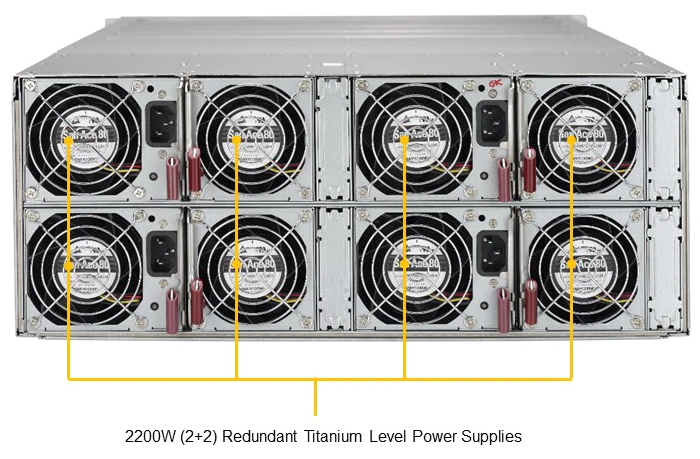

Rear View

Rear View

Integrated Board:

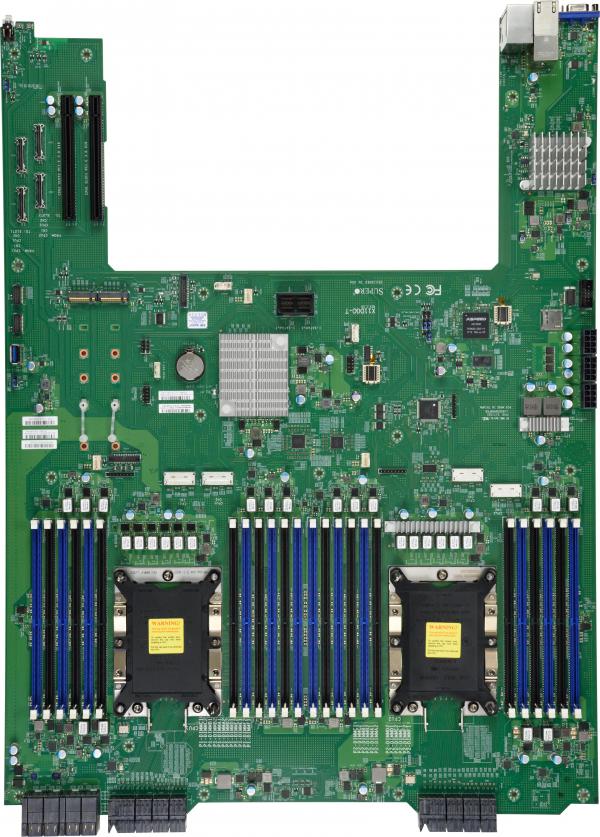

X11DGO-T (For SuperServer Only)

X11DGO-T (For SuperServer Only)

Key Features

  • Intel Xeon Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
  • Intel C621
  • Up to 3TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots
  • 2 PCI-E 3.0 x16
    4 PCI-E 3.0 x16 to midplane
    M.2 Interface: 2 PCI-E 3.0 x4
    M.2 Form Factor: 2260/2280/22110
    M.2 Key: M-Key
    M.2 Type: NVMe
  • 1 VGA port
  • Intel C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Dual LAN with Intel X540 10GBase-T Ethernet Controller
X11DGO-T Specifications
Physical Stats
Form Factor Proprietary
Dimensions 22.78" x 17.0" (57.86cm x 43.18cm)
Processor/Cache (per Node)
CPU
  • Intel Xeon Scalable Processors.
  • Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
Cores / Cache Up to 28 cores
System Memory
Memory Capacity Up to 3TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots
Memory Type 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • RDIMM: 64GB
  • LRDIMM: 128GB
  • 3DS LRDIMM: 128GB
Memory Voltage 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel C621
SATA Intel C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2500
Network Controllers Dual LAN with Intel X540 10GBase-T Ethernet Controller
Graphics Aspeed AST2500 BMC
Input / Output
SATA 8 SATA3 (6Gbps) port
LAN 2 RJ45 10GBase-T ports
USB 3 USB 3.0 ports (2 rear + 1 Type A)
Video Output 1 VGA port
Serial Port / Header 1 COM Port (1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E
  • 2 PCI-E 3.0 x16
  • 4 PCI-E 3.0 x16 to midplane
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4
  • Form Factor: 2260/2280/22110
  • Key: M-Key
  • M.2 Type: NVMe
System BIOS
BIOS Type AMI UEFI
Management
Software Intel Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor 5, Watchdog
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 2 fans with tachometer status monitoring, 3.3V standby, Memory Voltages, Monitors CPU voltages, Supports system management utility, VBAT
FAN 2x 4-pin fan headers (up to 2 fans), PWM fan speed control, Support 3-pin fans (w/o speed control)
Temperature N/A
LED N/A
Other Features ACPI power management, CPU thermal trip support for processor protection, Node Manager Support, RoHS, UID

Documentation:

Download the Supermicro GPU Solutions 4U Rackmount Datasheet (.PDF)
