Supermicro SuperServer 2029U-TN24R4T
24 Hot-Swap 2.5" Drive Bays; 24 NVMe (4 Hybrid ports - SAS3 via Opt. AOC) and 2 rear Hot-Swap 2.5" SATA Drive Bays


Supermicro SuperServer 2029U-TN24R4T

Supermicro Products
Supermicro SuperServer Bundle
Supermicro SuperServer 2029U-TN24R4T with 2x Samsung PM863a 240GB 2.5" SATA Hard Drives and 6x Intel DC P4610 1.6TB 2.5" PCIe SSD
Including Two Intel Xeon Silver 4110 Processor (11M Cache, 2.10 GHz) (P4X-SKL4110-SR3GH), Four 16GB 288-Pin DDR4 2666 Server Memory (MEM-DR416L-SL04-ER26), Supermicro Out of Band (OOB) Software License Key (SFT-OOB-LIC)
#SYS-2029U-TN24R4T-BUN
Our Price: $13,256.00

Click here to jump to more pricing!

Overview:

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 4 DIMMs and 6 NVMe).

Key Features

  • Virtualization
  • Hyperconverge Storage
  • Cloud Computing
  • High End Enterprise Server

Hardware Features:

  • Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
  • 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP)
  • 4 10GBase-T LAN ports with Intel X550
  • 24 Hot-swap 2.5" drive bays; 24 NVMe (4 hybrid ports - SAS3 via opt. AOC), 2 rear Hot-swap 2.5" drive bays; 2 internal M.2 (1 SATA3, 1 NVMe); 1 M.2 NVMe port, Optional extra M.2 NVMe and SATA3 ports
  • 4 Heavy duty 8cm PWM fans
  • 1600W High efficiency (96%) Redundant PSU; Titanium Level

NVM Express, X11, Intel Xeon Platinum, 80 Plus Titanium, 96 Titanium

SuperServer - Intel Xeon Scalable Processors Supported

These benefits combined with an excellent track record have earned Supermicro a reputation as a true leader in the high-end server/storage industry. Supermicro provides the most outstanding product line in the industry, ranging from single Atom and dual Xeon to quad Xeon MP systems. Their proven high level of quality and performance has made SuperServers the platform of choice for HPC, enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications.

  • Uncompromising Quality Control
  • The most Comprehensive Line of Servers, Storage Systems, and Subsystems
  • Widest Variety of Application Optimized Solutions, from High End Clusters to MicroServers
  • Best Performance per-Watt, per-Square-Foot, and per-Dollar
  • Superior Product Design Based in Silicon Valley
  • Consistently First-to-Market
  • Best Total Cost of Ownership (TCO)
  • Highest Quality Components and Materials
  • 3-Year Limited Warranty
  • 24-Hour Support and Global Services
  • Redfish API support

Specifications:


SuperServer 2029U-TN24R4T Specifications
Motherboard Super X11DPU
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores Up to 28 Cores with Intel HT Technology
System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM
  • 2666 ECC DDR4 NVDIMM
On-Board Devices
Chipset Intel C621 chipset
Storage SATA3 (6Gbps); RAID 0, 1, 5, 10 per node
Network Connectivity
  • 4x 10GBase-T ports via Intel® X550 Ethernet Controller
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Input / Output
NVMe 24 NVMe ports
LAN
  • 4 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB 3 USB 3.0 ports (2 rear, 1 Type A)
Video 2 VGA ports (1 rear, 1 onboard)
Serial Port / Header 1 Serial port
DOM 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type AMI 32Mb SPI Flash ROM
Management
Software
  • Intel Node Manager
  • Redfish API
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor 5
Power Configurations ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 2U Rackmount
Model CSE-219UBTS-R1K62P-TN24
Dimensions and Weight
Width 17.2" (437mm)
Height 3.5" (89mm)
Depth 27.76" (705.3mm)
Weight
  • Net Weight: 39 lbs (17.7 kg)
  • Gross Weight: 63 lbs (28.6 kg)
Available Colors Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • System information (overheat/UID) LED
Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (FH, 10.5" L)
  • 1 PCI-E 3.0 x8 (LP)
Drive Bays / Storage
Hot-swap
  • 24 Hot-swap 2.5" drive bays: 24 NVMe (4 hybrid ports - SAS3 via opt. AOC)
  • 2 rear Hot-swap 2.5" SATA drive bays
M.2
  • 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110)
  • 1 M.2 M-Key SATA3 via optional cable CBL-SAST-0538 and plastic stand-off FST-SCRW-0074L (2240/2260/2280/22110)
  • 2 M.2 PCI-E 3.0 x4 M-Key NVMe via optional add-on card AOC-SLG3-2M2 (2260/2280/22110)
System Cooling
Fans 4 Heavy duty 8cm PWM fans
Power Supply
Power 1600W Redundant Power Supplies with PMBus
Total Output Power 1600W/1000W
Dimension (W x H x L) 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb Max: 2.1A / Min: 0A
Output Type 25 Pairs Gold Finger Connector
Certification 9680Plus TitaniumUL/cUL/CB/BSMI/CE/CCC
Titanium Level
Operating Environment
RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List:


Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X11DPU  1 Super X11DPU Motherboard
CSE-219UBTS-R1K62P-TN24 1 2U Chassis
Add-on Card / Module AOC-2UR6N4-i4XT-P 1 2U Ultra Riser with 4-port 10GbE RJ45 (10GBase-T)
Backplane BPN-NVME3-216EB 1 BPN-NVMe3-216A-S4 Backplane Base Board
BPN-NVME3-216EL 2 PCIe Gen3x16 input to PLX9765 to support 12x NVMe port
BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-0097L-03 1 MINI SAS-4 SATA,INT,51CM,51CM SB,30AWG
Cable 2 CBL-PWEX-0653 3 8 pin female to 4 pin female power, 37cm, 18AWG,RoHS/REACH
Cable 3 CBL-PWEX-0702 1 PWEX,2X4F/P4.2 TO 1X4F/P5.08/RA,32CM,18AWG,YEL,BLK*2,RED
Cable 4 CBL-PWEX-1008 2 BPN PWR,2x4F/CPU to 2x4F/PCIe,P4.2, 12V,40CM,16AWG, 10A/pin, 0~80C
Cable 5 CBL-SAST-0819 4 OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
Cable 6 CBL-SAST-0820 4 OCuLink v. 1.0,INT,PCIe NVMe SSD, 85CM,34AWG,RoHS/REACH
Part MCP-110-00015-0N 8 Pan head screw, #6-32 x 6L
Air Shroud MCP-310-82921-0N 1 Plastic air shroud for SC829U, 219U (X11 24DIMM, left side)
MCP-310-82922-0N 1 Plastic air shroud for SC829U, 219U (X11 24DIMM, right side)
Riser Card RSC-U2N4-6 1 2U Ultra Riser Card with 4 NVME and PCI-Ex16,RoHS/REACH
RSC-UMR-8 1 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE
Heatsink / Retention SNK-P0068PS 2 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
* Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
* Cable 7 CBL-0088L 4 4 PIN MIDDLE FAN POWER CABLE (PWM). 27cm, 24AWG
* Cable 8 CBL-0174L 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH
* Cable 9 CBL-0318L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,24CM,28AWG
* FAN 1 FAN-0158L4 4 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
* Drive Tray(s) MCP-220-00117-0B 2 Black gen-3 hot-swap tool-less 2.5- inch HDD tray
MCP-220-00121-0B 24 Black gen-3 2.5 NVMe drive tray, Orange tab with lock (improved EMI for hotswap NVMe drive)
* Rail Set MCP-290-00053-0N-01 1 36"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W
* Air Shroud MCP-310-81905-0B 1 Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH
* Front Panel TB826 1 Front panel adaptor board (TB826) forSC826,213,216,219
* Rail Set MCP-290-00115-0N 1 Inner rail, quick-release type
Mounting Rails MCP-290-00053-0N-01 1 Auto-latch, inner/outer rail set, quick-release type, 26.9" to 36.4"
MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
Optional Parts List
  Part Number Qty Description
Add-on card for internal M.2 NVMe AOC-SLG3-2M2 1 Low Profile PCIe x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
2.5" SATA/SAS Drive Trays MCP-220-00147-0B 1-4 Tool-less black hot-swap 2.5" drive tray (Red tab, clip design)
MCP-220-00117-0B 1-4 Tool-less black hot-swap 2.5" drive tray (Red tab, button design)
MCP-220-00047-0B 1-4 Black hot-swap 2.5" drive tray (Red tab)
2U Cable Management Arm MCP-290-00128-0N &
MCP-290-00127-0N-01
1 2U Supermicro Cable Management Arm 2nd Gen (Compatible for racks that are 42" in depth)
Storage Control Card and Cable(s) AOC-S3008L-L8e &
1x CBL-SAST-0593
1 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD,12G,INT,60CM,30AWG
AOC-S3008L-L8i &
1x CBL-SAST-0593
1 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG
AOC-S3108L-H8iR &
1x CBL-SAST-0593
1 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
AOC-S3108L-H8iR-16DD & 1x CBL-SAST-0593 1 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
Network Card(s) AOC-SGP-i2/4
AOC-STGN-i1S/i2S
AOC-STGF-i2S
AOC-STG-i4S
AOC-STG-b4S
AOC-STG-i2T
AOC-STGS-i1/2T
AOC-STG-i4T
AOC-STG-i2
AOC-S25G-m2S
AOC-S40G-i2Q
-
-
-
-
-
-
-
-
-
-
-
Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2
Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550
Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
Standard LP 2-port 40GbE controller, Intel Fortville XL710
CachVault(s) BTR-CV3108-U1 - CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra
TPM security module AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller,
Horizontal form factor
TPM security module (optional, not included) AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller,
Horizontal form factor
Intel VROC RAID Key AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
SFT-DCMS-Single 1 DataCenter Management Package (per node license)

 Notes:

  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Views:

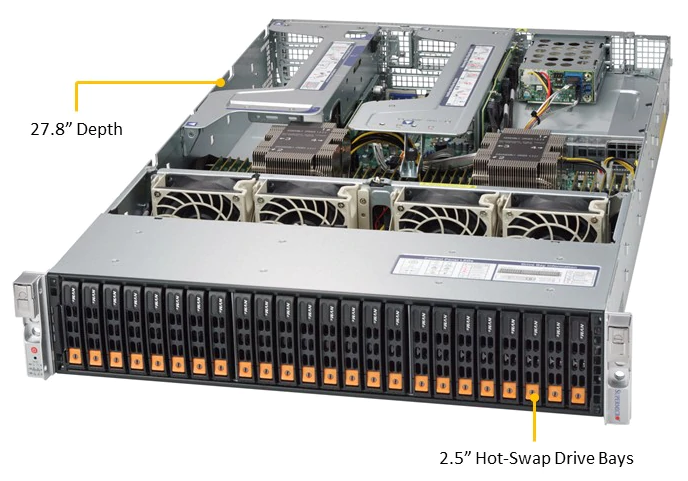

Angled View

Angled View

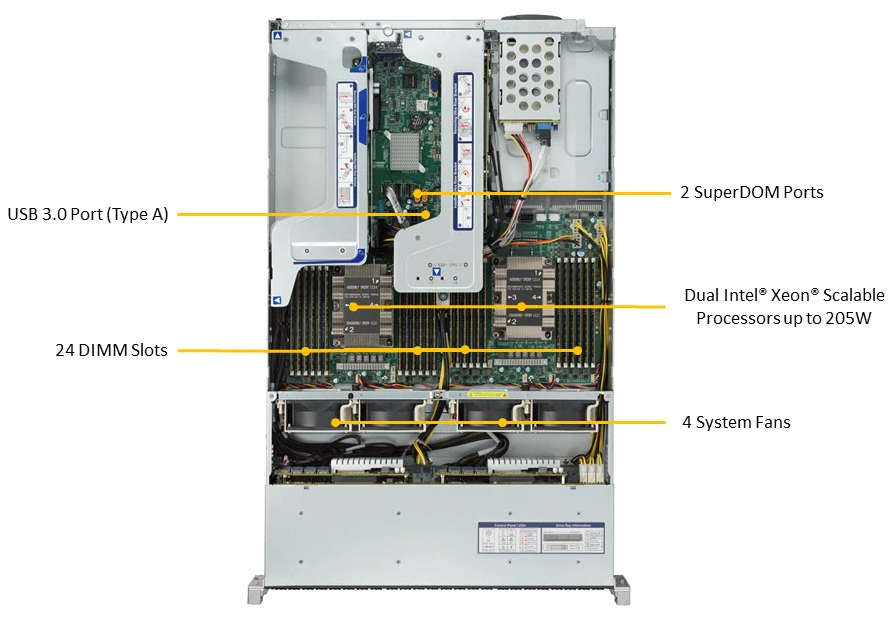

Top View

Top View

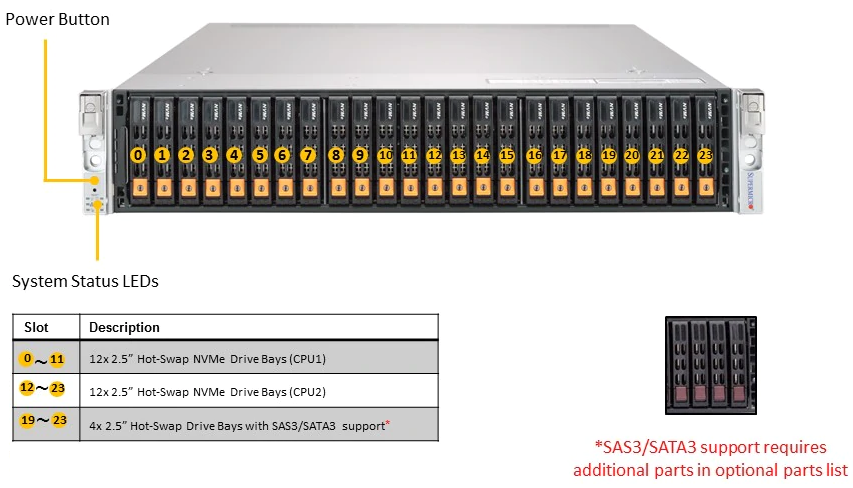

Front View

Front View

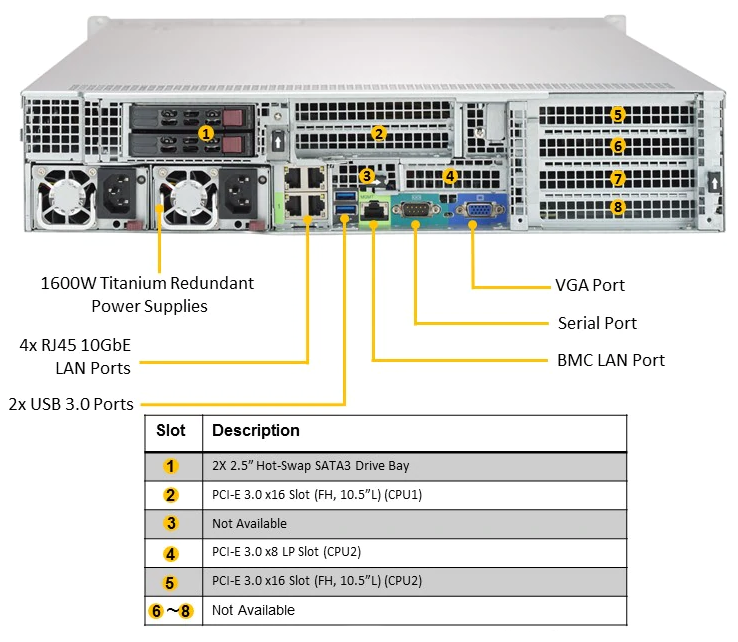

Rear View

Rear View

Integrated Board:

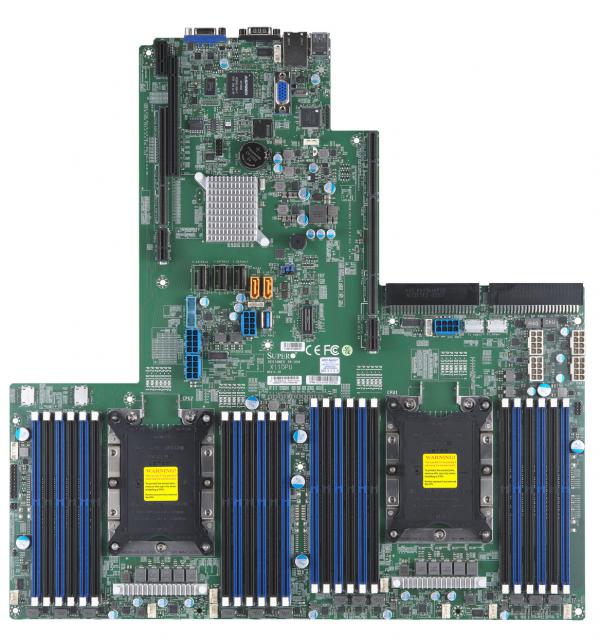

X11DPU (For SuperServer Only)

X11DPU (For SuperServer Only)

Key Features

  • Intel Xeon Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
  • Up to 3TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots
  • 1 PCI-E 3.0 x32 Right Riser Slot,
    1 PCI-E 3.0 x8 Right Riser Slot,
    1 PCI-E 3.0 x40 Ultra Riser Slot,
    4 PCI-E 3.0 NVMe x4 Internal Port(s)
  • 2 VGA D-Sub Connector ports
  • Intel C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Networking options provided via Ultra Riser
X11DPU Specifications
Physical Stats
Form Factor Proprietary Ultra/WIO
Dimensions 17" x 16.8" (43.18cm x 42.67cm)
Processor/Cache (per Node)
CPU
  • Intel Xeon Scalable Processors.
  • Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
Cores / Cache Up to 28 cores
System Memory
Memory Capacity Up to 3TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots
Memory Type 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • RDIMM: 32GB
  • LRDIMM: 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel C621
SATA Intel C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500
Network Controllers Networking options provided via Ultra Riser
Graphics Aspeed AST2500 BMC
Input / Output
SATA 14 SATA3 (6Gbps) port
USB 3 USB 3.0 ports (2 rear + 1 Type A)
Video Output 2 VGA D-Sub Connector ports
Serial Port / Header 1 COM Port (1 rear)
TPM 1 TPM Header & Chip both
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x32 Right Riser Slot,
  • 1 PCI-E 3.0 x8 Right Riser Slot,
  • 1 PCI-E 3.0 x40 Ultra Riser Slot
System BIOS
BIOS Type AMI 32Mb SPI Flash ROM
Management
Software Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor 5
Power Configurations ACPI Power Management
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 5+1 Phase-switching voltage regulator, 8 -fan status, Chassis intrusion header, HT, Supports system management utility, VBAT
FAN 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring , Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
Temperature Thermal Control for 8 Fan Connectors
LED N/A
Other Features 4x 8-pin GPU power connectors, Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS, SDDC
Operating Environment
Operating Temperature Range 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

Documentation:

Download the Supermicro SuperServer Datasheet (.PDF)

Pricing Notes:

Supermicro BigTwin Products
Supermicro SuperServer Bundle

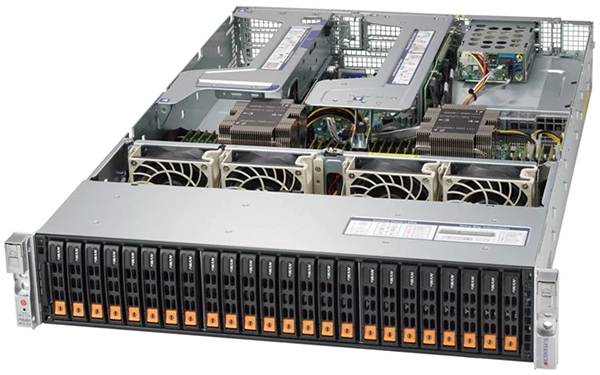

Supermicro SuperServer 2029U-TN24R4T with 2x Samsung PM863a 240GB 2.5" SATA Hard Drives and 6x Intel DC P4610 1.6TB 2.5" PCIe SSD
Including Two Intel Xeon Silver 4110 Processor (11M Cache, 2.10 GHz) (P4X-SKL4110-SR3GH), Four 16GB 288-Pin DDR4 2666 Server Memory (MEM-DR416L-SL04-ER26), Supermicro Out of Band (OOB) Software License Key (SFT-OOB-LIC)
#SYS-2029U-TN24R4T-BUN
Our Price: $13,256.00
Supermicro SuperServer Accessories
Intel Xeon Silver 4110 Processor (11M Cache, 2.10 GHz)
#P4X-SKL4110-SR3GH
Our Price: $581.00
Supermicro 16GB 288-Pin DDR4-2666 DIMM Server Memory
#MEM-DR416L-SL04-ER26
Our Price: $224.00
Samsung PM863a 240GB 2.5" 6Gb/s SATA Hard Drive
#HDS-2TVMZ7LM240HMHQ005
Our Price: $114.00
Intel DC P4610 1.6TB 2.5" NVMe PCIe SSD
#HDS-IUN0-SSDPE2KE016T8
Our Price: $1,116.00
Supermicro Software
Supermicro Out of Band Fireware Management Software License Key (BIOS Flash/Setting)
#SFT-OOB-LIC
Our Price: $17.00
