Supermicro A+ Server 2123US-TN24R25M
Ultra 24 Hot-Swap 2.5" U.2 NVMe Drive Bays


Supermicro A+ Server 2123US-TN24R25M

Supermicro Products
Supermicro A+ Server Bundle
Supermicro A+ Server 2123US-TN24R25M with 2x Intel DC P4610 1.6TB 2.5in PCIe SSD
Including Two AMD EPYC/Naples 7251 2.10GHz Processor (PSE-NPL7251-BFV8SAF), Sixteen 16GB 288-Pin DDR4 2666 Server Memory (MEM-DR416L-SL04-ER26)
#AS-2123US-TN24R25M-BUN
Our Price: $9,438.00

Click here to jump to more pricing!

Overview:

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 16 DIMMs, 1 NVMe). Recommended configuration for best performance is at least 24 or 32 Cores per CPU (minimum 48 or 64 Cores Total).

Key Features

  • Virtualization
  • Cloud Computing
  • High-End Enterprise Server
  • Hyperconverged Storage

Hardware Features:

  • Dual AMD EPYC 7000-Series Processors
  • Up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • Integrated IPMI 2.0 + KVM with  dedicated LAN
  • Dual 25G SFP28 LAN ports
  • Drive Bays:  24 hot-swap 2.5" U.2 NVMe drive bays
  • 1600W Redundant Power Supplies  Titanium Level (96%) (Full redundancy based on configuration and application load)

AMD EPYC, 80 Plus Titanium, 96 Titanium

Supermicro New Generation A+ Solutions - AMD EPYC Processor-based Solutions

A+ Servers are Your Best Choice!

Supermicro's latest range of AMD EPYC 7000 Series SoC-based server and storage solutions offer new levels of optimized performance per watt per dollar, and deliver outstanding core density, superior memory bandwidth, and unparalleled I/O capacity.

Supporting up to 32 "Zen" cores and 64 threads per socket, these Supermicro solutions are tightly coupled with high-throughput, low-latency, hot-swappable NVMe storage, up to 4TB of DDR4 memory over 8 memory channels per socket, and up to 128 PCI-E 3.0 lanes on a dual- or single-socket system.

Supermicro's new generation A+ solutions supporting AMD EPYC enable a new range of powerful and energy-efficient server options to radically lower data center TCO through an optimized balance of compute, memory, I/O, and storage resources.

  • Most Comprehensive Line of AMD-based Rackmount/Tower Servers
  • Redundant Components (virtually eliminating system downtime)
  • Best Price/Performance Ratio
  • Superior Product Design (all under one roof)
  • Consistently First-to-Market
  • Maximized Performance
  • Reduced Total Cost of Ownership (TCO)
  • Top-Notch Finishing Materials
  • 3-Year Limited Warranty
  • 24-Hour Server Support
  • Uncompromising Quality Control

Specifications:


A+ Server 2123US-TN24R25M (Black) Specifications
Motherboard H11DSU-iN
Processor/Chipset
CPU
  • Dual AMD EPYC 7000-series Processors
  • Socket SP3
Cores Up to 32 Cores
Chipset System on Chip (SoC)
System Memory
Memory Capacity
  • 32 DIMM slots
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM
  • 8-channel memory bus
Memory Type DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Connectivity Dual 25GbE SFP28 ports via AOC-2UR68-M2TS-O (Mellanox ConnectX-4 Lx EN)
VGA ASPEED AST2500 BMC
Input / Output
NVMe 24 U.2 NVMe support
LAN
  • Dual 25G SFP28 LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB 3 USB 3.0 ports (2 rear + 1 Type A)
VGA 2 VGA ports (1 rear, 1 onboard)
Others
  • 1 COM port
  • 2 SATA DOM power connectors
  • TPM 2.0 header
System BIOS
BIOS Type AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Chassis
Form Factor 2U Rackmount
Model CSE-219U2TS-R1K62P
Dimensions and Weight
Width 17.2" (437mm)
Height 3.5" (89mm)
Depth 28.46" (723mm)
Weight
  • Net Weight: 39 lbs (17.7 kg)
  • Gross Weight: 63 lbs (28.6 kg)
Front Panel
Buttons
  • Power On/Off button
  • System Reset butto
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED / UID LED
Drive Bays / Storage
Hot-swap 24 hot-swap 2.5" U.2 NVMe drive bays
System Cooling
Fans 4 heavy-duty PWM fans with optimal fan speed control
Air Shroud 1 Air Shroud
Power Supply
Power 1600W Redundant Power Supplies with PMBus
Total Output Power 1600W/1000W
Dimension (W x H x L) 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb Max: 2.1A / Min: 0A
Output Type 25 Pairs Gold Finger Connector
Certification 9680Plus TitaniumUL/cUL/CB/BSMI/CE/CCC
Titanium Level
PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
FAN
  • Up to 4-fan status tachometer monitoring
  • Up to four 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 4x Fan connectors
  • I²C Temperature Sensing Logic
LED CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Operating Environment
RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List:


Parts List - (Items Included)
  Part Number Qty Description
Motherboard MBD-H11DSU-iN 1 Super H11DSU-iN Motherboard
Chassis CSE-219U2TS-R1K62P 1 2U Chassis
HD Backplane BPN-NVME3-216N-S4 1 24-port 2U (SC216/219) NVMe direct-attached backplane, support 24x 2.5-inch NVMe devices, 4 of them are hybrid ports also support SAS3/SATA3
Cable CBL-PWEX-1018 1 BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 42CM,18AWG, 11A/pin, -25~85C
CBL-PWEX-1019 2 BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 67CM,18AWG, 11A/pin, -25~85C
CBL-PWEX-1048 1 BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 82CM,18AWG, 11A/pin, -25~85C
CBL-SAST-0818 2 OCuLink v. 1.0,INT,PCIe NVMe SSD, 55CM,34AWG
CBL-SAST-0819 2 OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
CBL-SAST-0841 8 MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 76CM,34AWG,RoHS
CBL-SAST-0849 12 MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 57CM,34AWG
Tray MCP-220-00121-0B 4 Black gen-3 2.5 NVMe drive tray, Orange tab with lock (improved EMI for hotswap NVMe drive)
Riser Card RSC-W2-66 1 RSC-W2-66
RSC-WR-6 1 1U RHS WIO Riser card with one PCI-E x16 slot,HF,RoHS
Heat Sink SNK-P0063P 2 2U Passive CPU Heat Sink for AMD Socket SP3 Processors
Rails MCP-290-00115-0N 1 Inner rail, quick-release type
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Optional Parts List
  Part Number Qty Description
TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9655V-S - Based on AOM-TPM-9655V with Server TXT package
AOM-TPM-9665V - AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
AOM-TPM-9665V-S - Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)

Views:

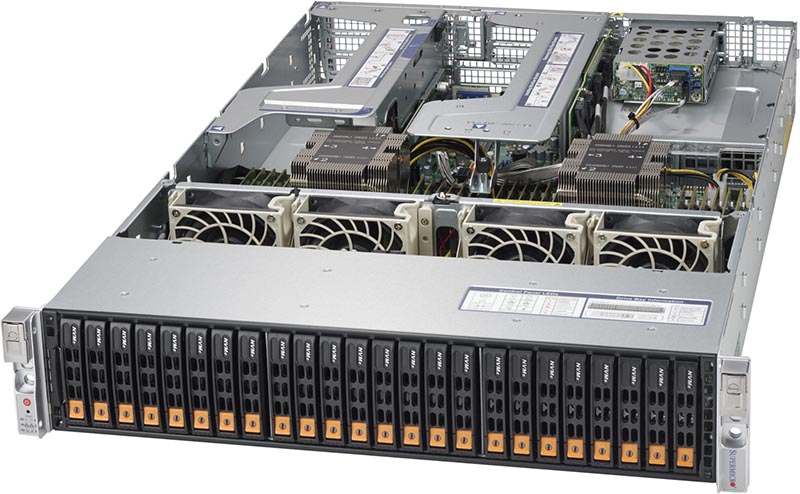

Angled View

Angled View

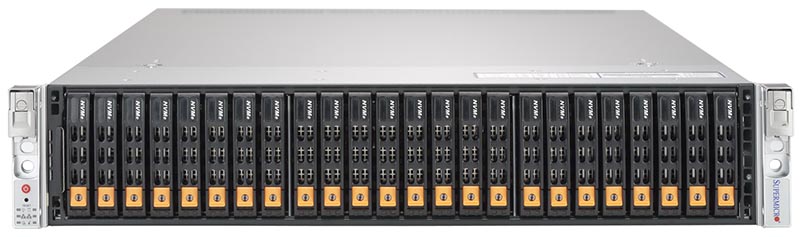

Front View

Front View

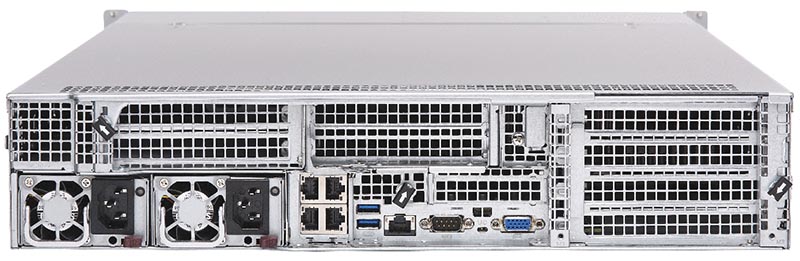

Rear View

Rear View

Integrated Board:

H11DSU-iN

H11DSU-iN

Key Features

  • Dual AMD EPYC 7000-Series Processors
  • 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • Expansion slots:
    • WIO:
      • 1 PCI-E 3.0 x32 Left Riser Slot
      • 1 PCI-E 3.0 x16 Right Riser Slot
    • Ultra:
      • 1 PCI-E 3.0 x40 Far Right Riser Slot
  • 14 SATA3, 2 SATA DOM, 4 NVMe
  • Integrated IPMI 2.0 + KVM with dedicated LAN
  • ASPEED AST2500 BMC graphics
  • Up to 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
  • 8 4-pin PWM Fan & Speed control
H11DSU-iN Specifications
Physical Stats
Form Factor Proprietary Ultra/WIO
Dimensions 17" x 17" (43.2cm x 43.2cm)
Processor/Cache
CPU
  • Dual AMD EPYC 7000-series Processors
  • Socket SP3
Cores / Cache Up to 32 cores
Chipset System on Chip
System Memory
Memory Capacity
  • 32 DIMM sockets
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • 8-channel memory bus
Memory Type DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
SATA SATA3 (6 Gbps)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers Provided via Ultra Riser Card
VGA ASPEED AST2500 BMC
Input / Output
SATA 14 SATA3 (6 Gbps) ports
LAN 1 RJ45 Dedicated IPMI LAN port
USB 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
VGA 1 VGA port
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • 4 NVMe
  • TPM 2.0 header
Expansion Slots
PCI-E
  • WIO:
    • 1 PCI-E 3.0 x32 Left Riser Slot
    • 1 PCI-E 3.0 x16 Right Riser Slot
  • Ultra:
    • 1 PCI-E 3.0 x40 Far Right Riser Slot
System BIOS
BIOS Type AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Management
Software
  • Super Doctor 5
  • Watch Dog
  • NMI
  • SUM
  • IPMI 2.0, KVM with dedicated LAN
Power Configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby
  • VBAT
  • CPU switching voltage regulator
FAN
  • Up to 8-fan status tachometer monitoring
  • Up to eight 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 8x Fan connectors
  • I2C Temperature Sensing Logic
LED CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Operating Environment
Operating Temperature Range 10°C to 35°C (50°F to 95°F)
Non-Operating Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

Videos:

Supermicro A+ Server Solutions

Supermicro’s market leading server solutions now include servers powered by AMD EPYC processors. These servers deliver outstanding performance to power through the most demanding workloads while driving up productivity in your datacenter. The A+ Server solutions, which includes the building block solutions, are available as high-performance two-socket or a powerful single-socket system to drive a variety of use-cases.



Documentation:

Download the Supermicro Next Generation A+ Solutions Datasheet (.PDF)

Pricing Notes:

Supermicro Products
Supermicro A+ Server Bundle
Supermicro A+ Server 2123US-TN24R25M with 2x Intel DC P4610 1.6TB 2.5in PCIe SSD
Including Two AMD EPYC/Naples 7251 2.10GHz Processor (PSE-NPL7251-BFV8SAF), Sixteen 16GB 288-Pin DDR4 2666 Server Memory (MEM-DR416L-SL04-ER26)
#AS-2123US-TN24R25M-BUN
Our Price: $9,438.00
Supermicro A+ Server Accessories
AMD EPYC/Naples 7251 2.10GHz Processor (2/1P, 8C/16T, 2M, 34.1GB, 120W, 4094)
#PSE-NPL7251-BFV8SAF
Our Price: $523.00
Supermicro 16GB 288-Pin DDR4-2666 DIMM Server Memory
#MEM-DR416L-SL04-ER26
Our Price: $187.00
Intel DC P4610 1.6TB 2.5" NVMe PCIe SSD
#HDS-IUN0-SSDPE2KE016T8
Our Price: $730.00
Supermicro Software
Supermicro Out of Band Fireware Management Software License Key (BIOS Flash/Setting)
#SFT-OOB-LIC
